Address Verification

The Address Verification panel can be accessed via System Management > Drivers > Address Verification. It aims to provide an overview of all current drivers and their connections, along with the present state for both. By selecting a driver or a connection in the left panel pane you can query wrong addresses for the selected item.

The wrong addresses are listed in the right pane of the panel.

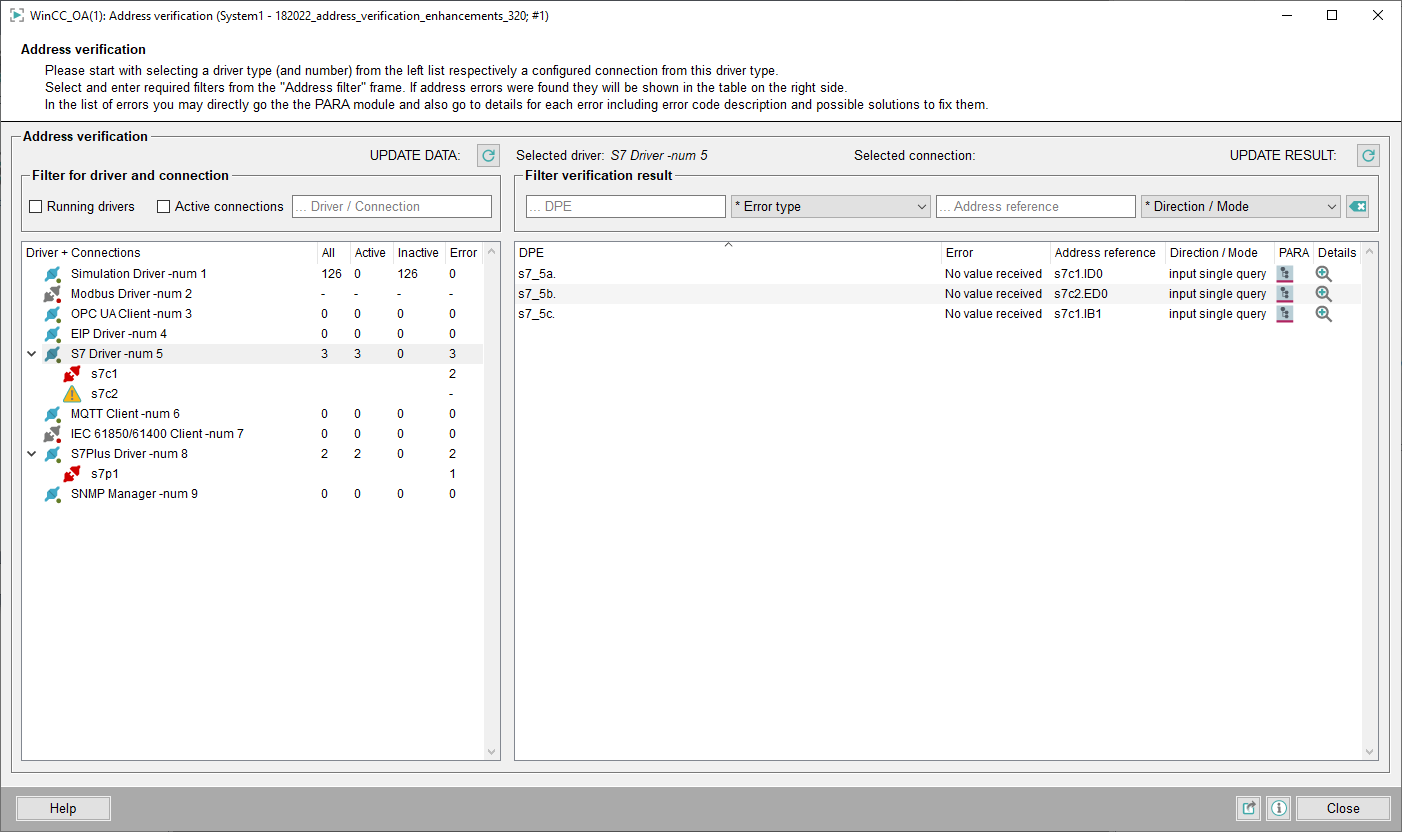

Figure 1. Address Verification panel

Filter for driver and connection

This part of the panel shows all drivers and connections, and can be filtered for Running drivers and active connections to a specific driver or connection.

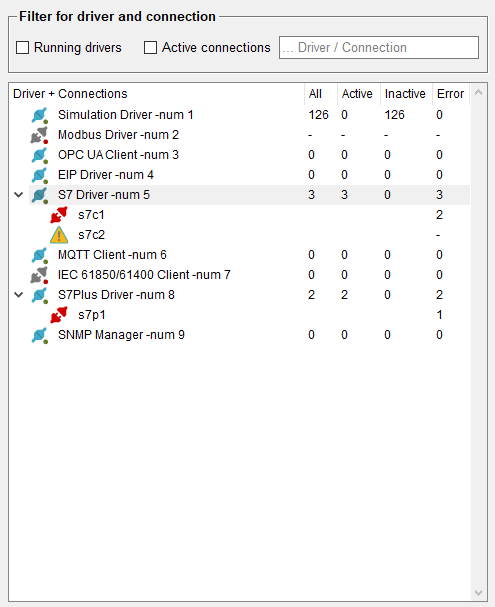

Figure 2. Filter for driver and connection
The tree element shows all currently known drivers with an icon for their connection state. Possible states are:
  • : The driver is currently running.
  • : The driver is stopped or was not started.
  • : The connection to the device has been established.
  • : The connected device is in the "STOP" state.
  • : There is no connection to the device.
The table behind provides the number of all, active, inactive and wrong addresses corresponding to the driver or connection.

Address verification result

This Element shows details for the selected connection.

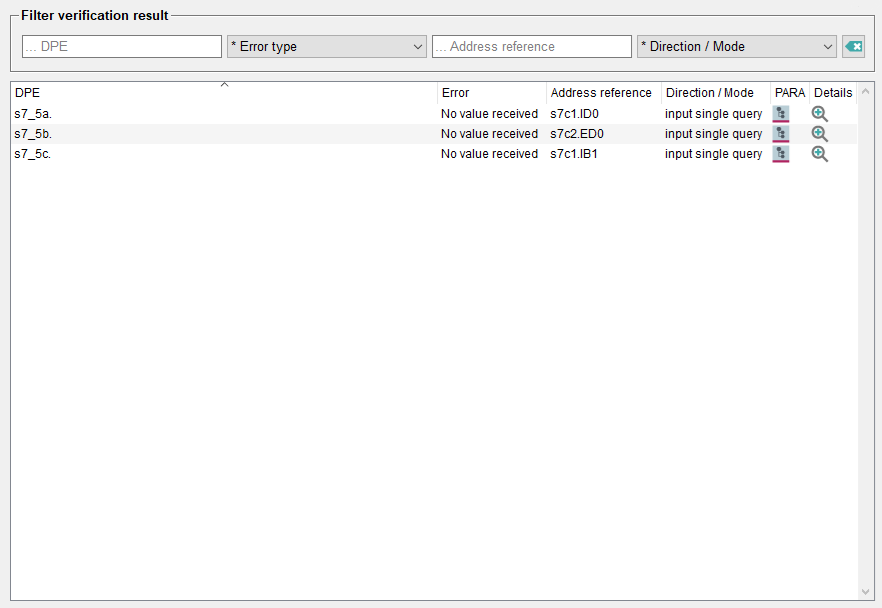

Figure 3. Filter verification result

The result can be filtered according to the DPE, the error type, the address reference or the Direction/Mode.

The list below shows the connection DPE, the error, address reference and Direction/ Mode. The buttons in the last two rows provide links to further details:

  • : opens the PARA, filtered to the relevant DPE.
  • : opens a panel with verification details for the specific error.

With the export button() at the bottom of the page, the current error list can be exported in its unfiltered state.
