VIDEO_OA_openMessageInfoAnswer()

This function opens a dialog and you can adjust the message individually.

Synopsis

void VIDEO_OA_openMessageInfoAnswer(string sMessage1, int iMode, int &iAnswer);

Parameters


Parameter	Description
sMessage1	Text shown in the dialog.
iMode	Answer mode: 1=Yes/No 0=Ok/Cancel Note: If you pass another value than 1 or 2, the buttons will not be labelled.
&iAnswer	Answer: 0 = Left button clicked. 1= Right button clicked. 3= Dialog was closed by clicking X.

Return Value

None.

Errors

None.

Description

This function opens a dialog and you can adjust the message individually.

EXAMPLE

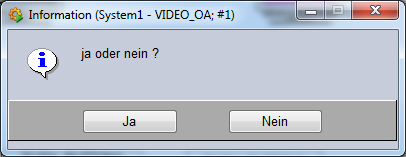

The following example opens this window:

main()
{
  int iAnswer;
  VIDEO_OA_openMessageInfoAnswer("yes or no?", 1, iAnswer);
  DebugN(iAnswer);
}

Assignment

Video functions.

Availability

UI, CTRL
