Data point type _AsciiConfig
In order to save various configurations, data points of the _AsciiConfig type are created. The name of the configuration that can be adjusted in the panel does not correspond to the name of the data point, which is automatically generated.

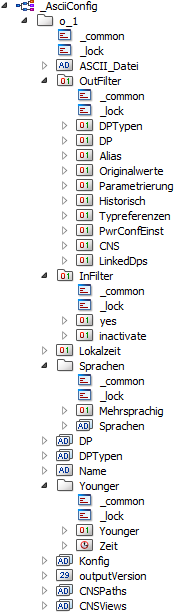

Description of the data point elements
| Data point element | Meaning |
|---|---|
| ASCII_Datei | The path and file name of the output file are saved in this sheet. |
| OutFilter.DPTypen | Filter T (output of all data point types) |
| OutFilter.DP | Filter D (output of all data points) |
| OutFilter.Alias | Filter A (output of all aliases and comments) |
| OutFilter.Originalwerte | Filter O (output of all original values) |
| OutFilter.Parametrierung | Filter P (output of all configurations) |
| OutFilter.Historisch | Filter PH (in addition to configurations, outputs history values of alert handlings and alert classes) |
| Outfilter.Typreferenzen | Filter + Type references (output of referenced data points) |
| Outfilter.PwrConfEinst | Filter + Pwr.Conf.Settgs. (output of power config settings) |
| Outfilter.CNS | Filter C (output of CNS nodes) |
| Outfilter.LinkedDps | Filter + Linked DPs (output of data points linked to CNS nodes) |
| InFilter.yes | If the ASCII Manager is used to input ASCII files that modify existing data point types, it is necessary to confirm these modifications interactively during import. Whether or not these messages are automatically confirmed is stored in this data point sheet. |
| InFilter.inactivate | Specifies alarm handling in this configuration. |
| Lokalzeit | Specifies whether data are input or output in local time format. |
| Sprachen.Mehrsprachig | Used to output multilingual projects |
| Sprachen.Sprachen | All languages in the configuration to be saved are stored here. |
| DP | A list of all data points to be output. |
| DPTypen | All desired data point types are stored in this data sheet. |
| Name | Name of configuration |
| Younger.Younger | Specifies whether the "start export from (time)" option was set |
| Younger.Time | Defines from which time the export is started from. |
| Config | All DP configs output with this configuration are stored in this element. |
| outputVersion |
The option for the export is stored in this element. The following options are available: 0 - Regular export 1 - Multi language export (Format 2) 2 - PowerConfig output 1 DP/line (Format 3) 3 - PowerConfig output 1 DPE/line (Format 4) |
| CNSPaths | The paths of all CNS nodes defined for the export are stored here. |
| CNSViews | Currently not in use |
