pmonGetSecondsToKill()

The function pmonGetSecondsToKill() returns the set "seconds to kill" for a WinCC OA manager.

Synopsis

int pmonGetSecondsToKill(int idx);

Parameters

Parameter Description
idx The WinCC OA manager index. See chapter Details on the Pmon

Return value

The function pmonGetSecondsToKill() returns the set seconds to kill for a WinCC OA manageror in the event of errors, -1.

Description

The function pmonGetSecondsToKill() returns the set seconds to kill for a WinCC OA manager. The seconds to kill are set for a manager in the WinCC OA console and shown in the console - see figure below.

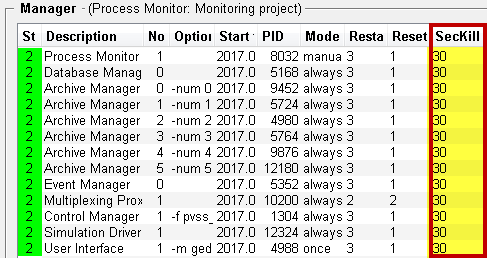

Figure: WinCC OA console and "seconds to kill -secKill" for the managers

NOTE that the function can only be used on a local computer. A remote UI cannot query the PMON of a server.

EXAMPLE

In the following example, the names as well as the secKill times of WinCC_OA managers are returned and output.

  1. main(mapping event)


    {


      string pName;


      int i, secKill;


      for (int i = 0; i < pmonGetCount(); i++)


      {


       secKill = pmonGetSecondsToKill(i);


       pName = pmonGetName(i);


       DebugN("Manager name: ", pName, "Seconds to kill:", secKill);


      }


     }

The function outputs the names as well as the secKill times of WinCC_OA managers as follows:

WCCOAui2:["Manager name: "]["WCCILpmon"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCILdata"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCILevent"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCILproxy"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOActrl"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCILsim"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAui"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOActrl"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOActrl"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAui"]["Seconds to kill:"][30]

WCCOAui2:["Manager name: "]["WCCOAui"]["Seconds to kill:"][30]

Assignment

PMON functions.

Availability

UI
