General

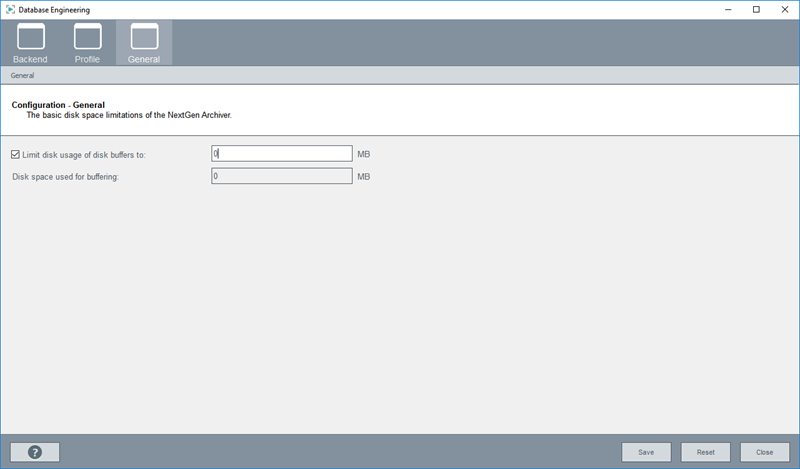

Open the General tab via WinCC OA System Management > Database > Database Engineering

On the General tab you can configure:

Buffers

Limit disk usage of disk buffers to. When this limit in "megabytes" is exceeded, the oldest buffer files are deleted to make place for new files.
Disk space used for buffering: shows the current amount of disk space (in megabytes) used for buffering.
