Configuration

Default Configuration

1. Create a new project (optional)
2. Add a Control manager to the project which starts the webclient_http.ctl script.
3. Define the start panel by using the config entry [httpServer] uiArguments. e.g. uiArguments="-p myPanel.pnl" (optional, can also be set by using the URL parameter "panel")
4. Start the project
5. Open the web address of the ULC UX under http://<MyWebServerAddress>:<port>/data/ulc/start.html (Default port Windows: http=80 / https=443; Default port Linux: http=8080 / https=8079), e.g. https://localhost/data/ulc/start.html

http, Server hört auf Port http:// - 80
http, Server hört auf Port https:// - 443

Additional Configuration

Following additional (optional) settings can be made for the ULC UX:

• WinCC OA web server specific settings can be made. Information can be found under HTTP Server, basics
• For changing the used ports the config entries [webClient] httpPort and [webClient] httpsPort can be used.
• Depending on the complexity of the project and the number of clients multiple remote web servers can be used. Use the [httpServer] loadBalance config entry to configure the web server load balancing.
• The starting page of the web server can be set by using the [httpServer] indexPage config entry.
• When using a redundant WinCC OA project the web server control manager must be started with the parameter "-connectToRedundantHosts".
• By defining a panel topology user specific start panels can be set.
• Various UI Manager options can be set with the config entry [httpServer] uiArguments.
• The amount of times the ULC UX tries to reconnect to the webserver(s) can be set via the config entry [ulcUX] reconnectCount

Further configuration settings can be found under Possible Config Entries [httpServer].

HTTP server authentication

In order to use the HTTP server authentication, add the [webClient] httpAuth=1 config entry to the webClient section of the config file and enable the httpLogin in the WinCC_OA_Proj/config/config.http file. Copy the config.http file first from wincc_oa_path/config to WinCC_OA_Proj/config.

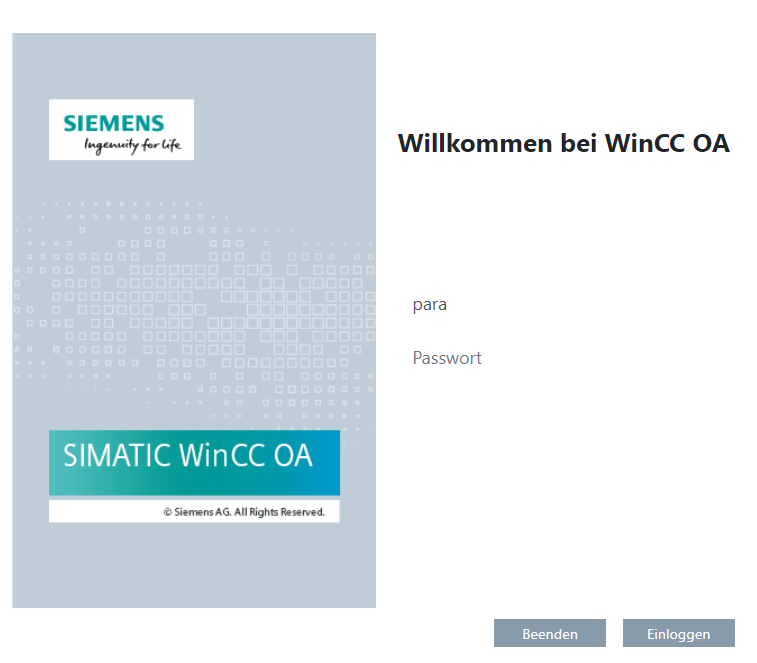

If you use the HTTP server authentication, a login dialog (HTML5 page) is shown:

Configuration of a remote web server for the ULC UX

If the remote web server has access to the project data of the user interface (panels, scripts, color databases). e.g.

• a local copy of all project data
• via one or more "proj_path" entries that refer to the server and to the corresponding project directories

you can set the following config entry on the web client:

[httpServer]
uiUsesMainServerAsFileServer = 0

If the entry was not set, you have to start the web server (script webclient_http.ctl) also on the server so that the ULC UX-UI (that is started on the remote client computer) can copy the files from the server into the local cache directory. For an architecture figure of a remote configuration, see figure Multi System Architecture in the chapter Architecture.

URL Parameter

The URL parameter can be used to define different properties of the ULC UX on the Client. The parameters are added after the ULC UX web adress as "?<parameter>=<value>".

Load Balancing

Every WinCC OA web server can be used as a load balancer. The configuration is done by using the config entry [httpServer] loadBalance in the config files of every web server, which should use the load balancing feature (see also Redundancy, basics).

The entry can be set multiple times, where each entry defines an additional web server that can be used to start a new ULC UX UI manager for the current ULC UX project.

Example - loadBalance

[httpServer]
loadBalance = "WebServer1"
loadBalance = "WebServer2"

To define the maximum number of ULC UX UI manager located on the web server, the config entry can be extended with the postfix “max=x” where x defines the maximum number of Uis. By default (= no max parameter is stated) the limit is set to 5 Uis. If the max parameter is set to 0 no connections will be accepted by the web server.

When a new client wants to connect to the WinCC OA system, the load balancing algorithm automatically distributes the client connections equally across the available WinCC OA web servers, based on the number of already running web clients.

Example – loadBalance max=x

[httpServer]
loadBalance = "WebServer1 max=10" // A maximum of 10 ULC UX client connections can be opened on WebServer1
loadBalance = "WebServer2 max=15" // A maximum of 15 ULC UX client connections can be opened on WebServer1

Facts and Benefits of Load Balancing

• Several dedicated machines can act as web server for the ULC UX
• Easy configuration due to the use of built-in WinCC OA web server
• The web server can be installed in a DMZ for security reasons
• Dedicated web server can use redundant connections to the redundant WinCC OA servers
• WinCC OA servers (redundant server) can also act as web server for a limited number of ULC UX clients.
• For small systems no dedicated web server machine is necessary.
• Automatic distribution of client connects across the web servers
• The number of maximum clients per web server can be defined
• Project data (panels, script libraries) are located on the (redundant) WinCC OA server and automatically synchronized with the web server.
• The distribution algorithm is based on the number of running web clients per web server and not on CPU or other hardware parameters.

Single Sign On

Single Sign On (SSO) authentication is used for the purpose that a user does not need to log in to every application after he is successfully logged on to the domain. SSO authentication increases the IT security since the user management is centralized and administrated by the IT administrators. Moreover, it increases the comfort for the user.

To use SSO for your WinCC OA project the corresponding IT infrastructure must be available in your network.

For a detailed description of SSO for WinCC OA please refer to User administration, basics

How Single Sign-On Works

The following steps demonstrate how SSO is working for the ULC UX

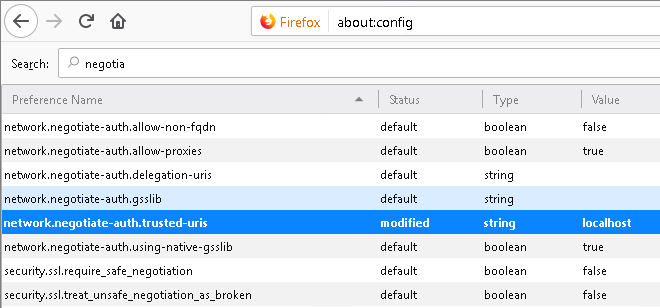

1. A user accesses the web server via the web browser and automatically provides the user credentials via secure HTTPs – “negotiation” authorization.
2. The WinCC OA Web Server checks whether the user credentials are stored and authorized in the Key Distribution Service (Active Directory in case of Windows and Kerberos in case of Linux). If user is authorized the process continues from step 5 in this list.
3. If there are no credentials stored for this user or error at authorization occurs (e.g. wrong password) the user’s browser prompts a logon form and has to logon manually.
4. The User supplies credentials.
5. The WinCC OA Web Server starts the WinCC OA user interface with the provided credentials. The User Interface itself automatically tries to logon the user with the provided credentials to the WinCC OA project running on the WinCC OA server. If the login fails or the user does not exist the login panel is shown.

If the User’s credentials are not stored within the WinCC OA project, a WinCC OA Administrator has to add the user to the project either via

• Login one time via native Client on the WinCC OA server in case of activated Windows authorization

or

• Create the user manually via WinCC OA user management.

Benefits of SSO

• Central management of WinCC OA users and permissions.
• Uses Active Directory under Windows
• Uses Kerberos authentication under Linux
• When activated, automatic log on to the WinCC OA web server and also to the project is provided
• Different start panels for different users possible (see WinCC OA Panel Topology).
• Increases IT security due to central management of permissions.

Additional Configuration

Style

By default the ULC UX uses the style "fusion" for displaying the UIs. This setting can be changed by using the UI Parameter "-style windows" which will change to the Windows style. The parameter can be set as parameter for the [httpServer] uiArguments config entry.

Panel Size

If the displayed content within the ULC UX exceeds the available size within the web browser the browsers displays scrollbars that can be used to navigate to the currently not visible parts of the content.

If scrollbars are required within a panel due to the size of the panel than these scrollbars are also displayed within the ULC UX.

Copy to local Clipboard

Due to the server/client architecture of the ULC UX a direct copy to the clipboard from the UI to the client machine is not possible. In this case the server will prompt a copy dialog in the right bottom corner of the ULC UX interface.
