BACnet HMI, Basics

The WinCC OA BACnet HMI (Human Machine Interface) acts as an interface between the WinCC OA BACnet driver and the BACnet devices/objects from the BACnet network or an EDE file.

The most important tasks of the WinCC OA BACnet HMI are:

• Browsing for and deleting BACnet devices (online or offline)
• Browsing and deleting BACnet devices (online or offline)
• Creating devices and objects found in WinCC OA
• Handling and visualizing devices and objects via faceplates

These and other tasks can be performed with the aid of two explorers - WinCC OA BACnet Engineering Explorer and WinCC OA BACnet Device Explorer.

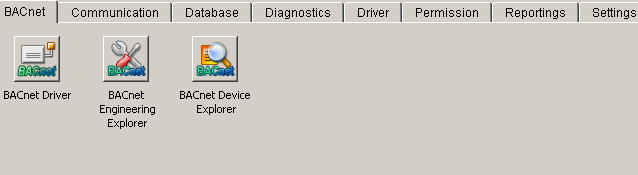

Both explorers are opened via the WinCC OA System Management in the BACnet tab.

For the documentation on the WinCC OA BACnet driver, see WinCC OA Online Help (Drivers -> BACnet).
