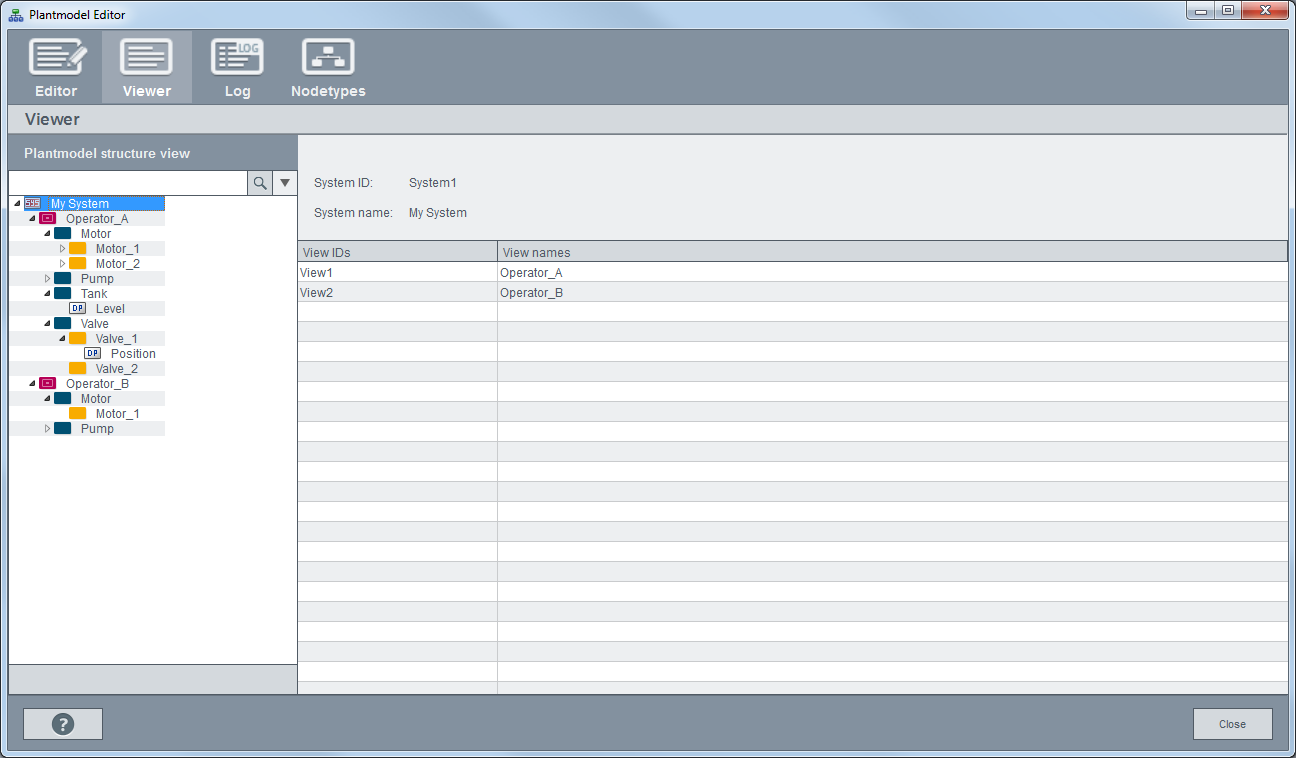

Viewer

The Viewer shows existing views, trees and nodes within the system.

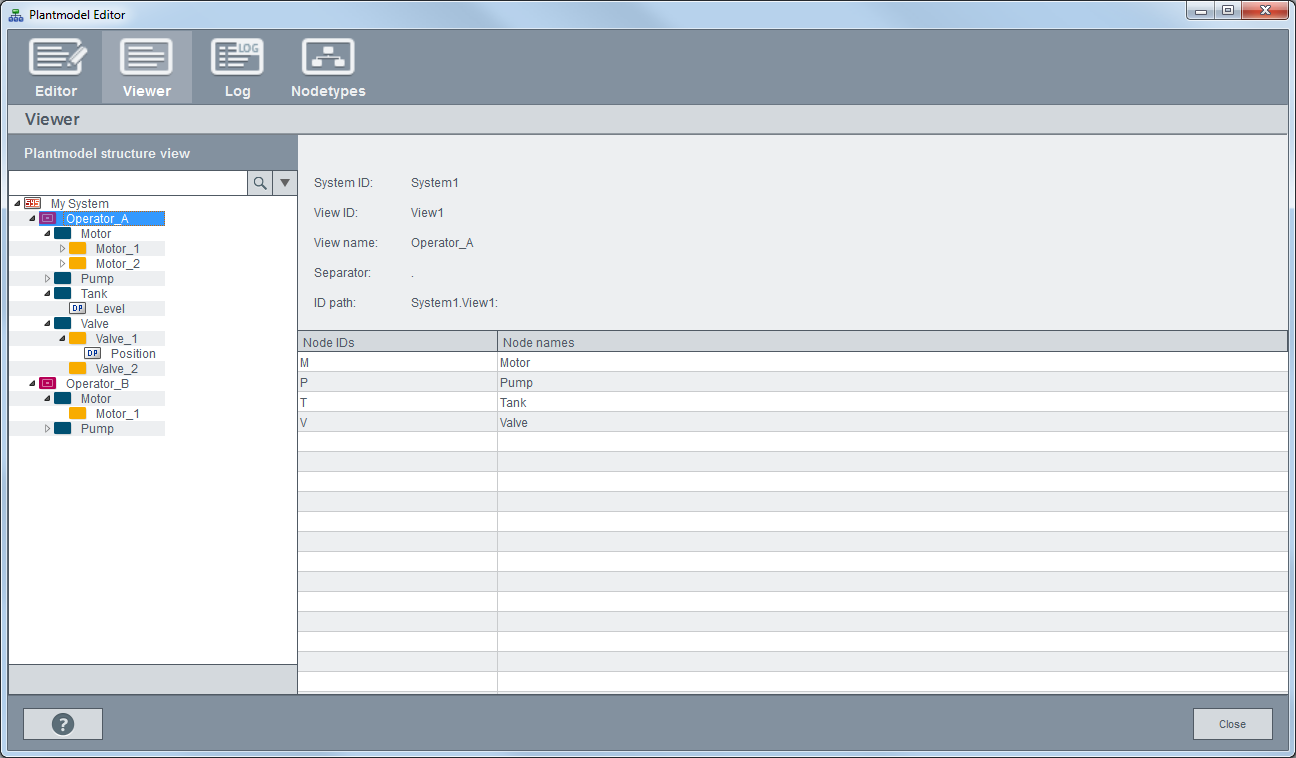

View

The Viewer shows the properties for a view as well as a list of all nodes.

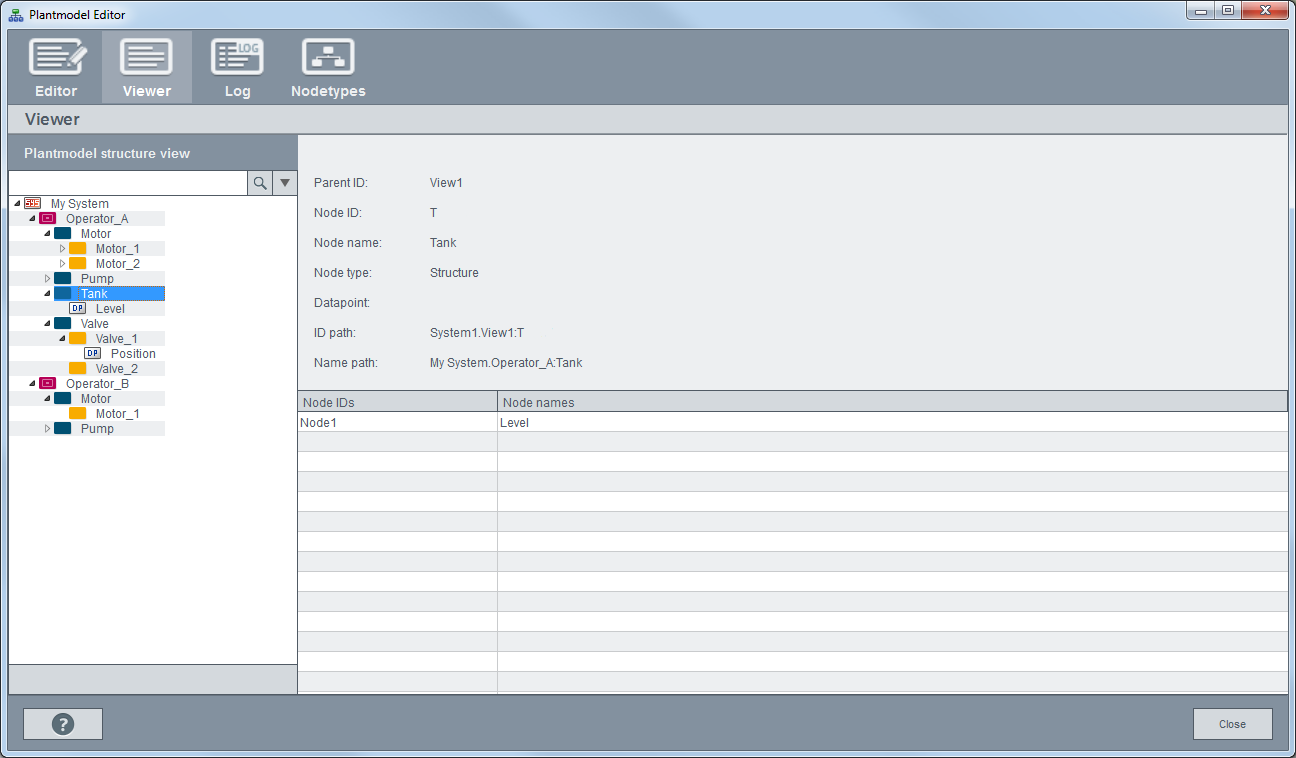

Node without data point

The overview of a data point without a linked data point shows all properties of the node as well as all directly assigned nodes.

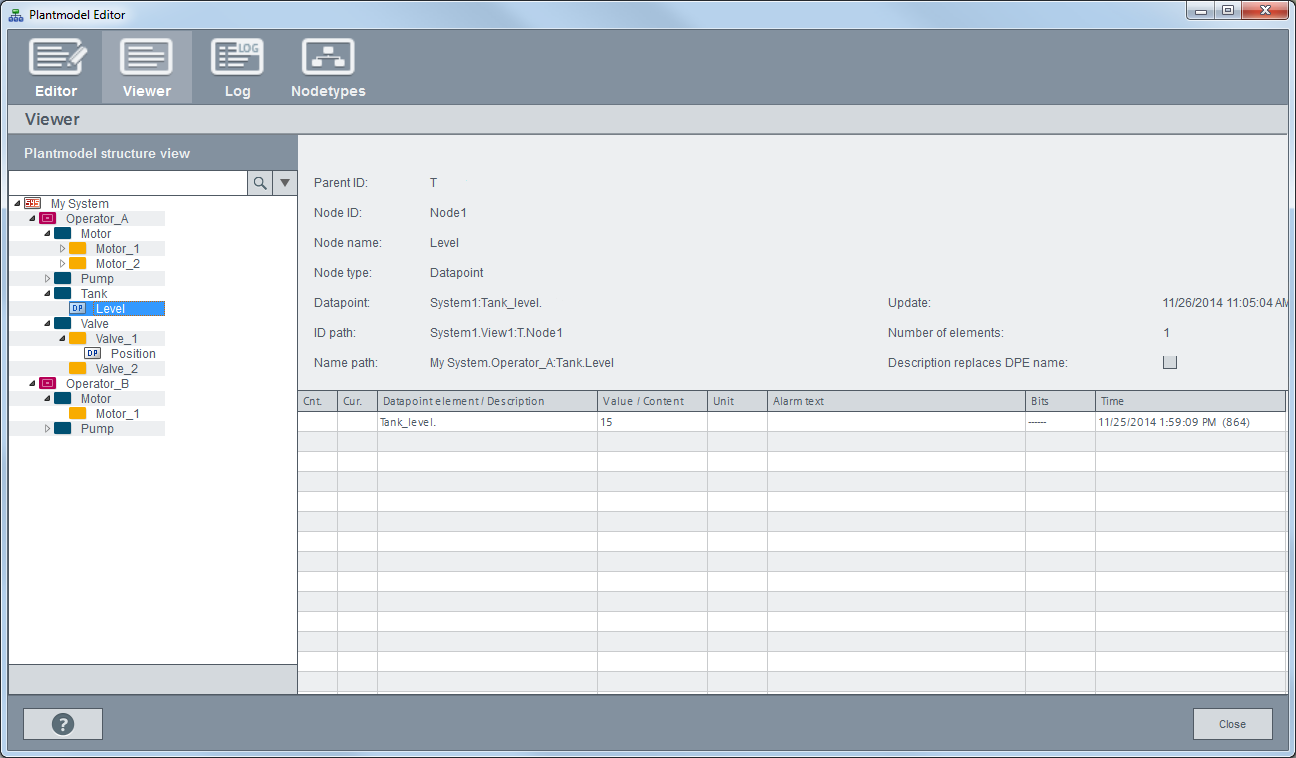

Node with data point

In case that a data point is linked to a node all data point elements and values are shown.

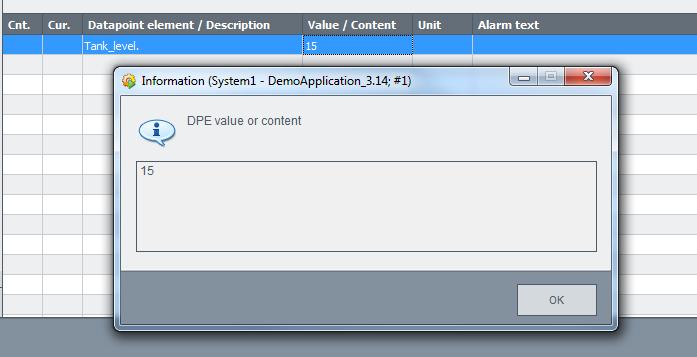

You can view the content of the individual columns by clicking on the cell. An information window is shown:
