Configuring backups

Enter the parameters for your backup in the Configuration tab. The settings for host and path of this panel apply to both database backup and project backup. The Online backup can be used for HDB/Raima and SQLite databases. For NGA use the Full DB Backup and Restore.

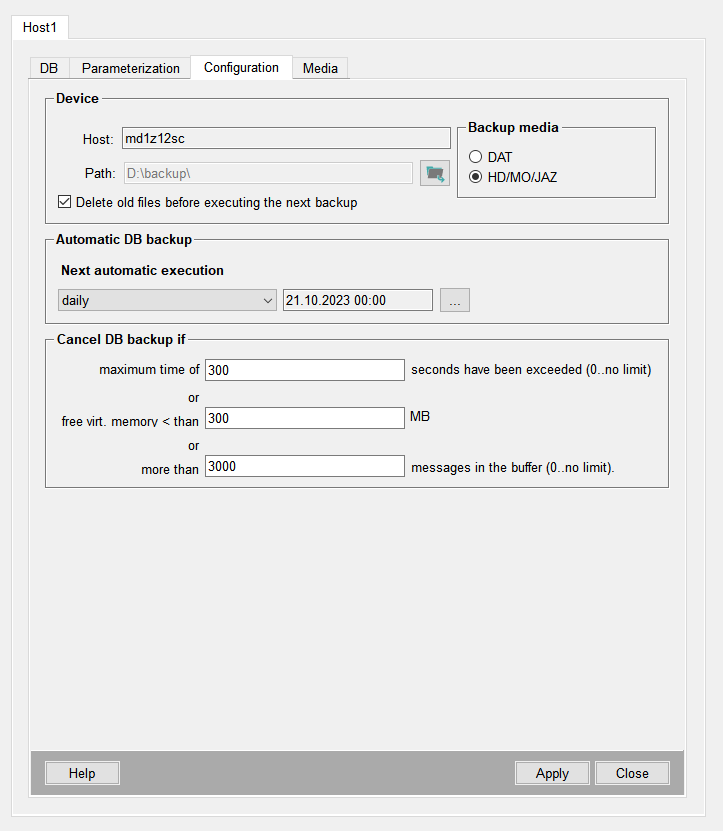

Figure 1. Configuration Tab
  • Host: The input field displays the current host (name of computer). The host name cannot be changed.
  • Target path: Here you specify the path for your backup. Press the ”Browse for Folder” button and navigate to the folder where you wish to store your backup.
    Note: Ultimately, you should think of storing your backups in a different building or on a remote server. You can save the back-up also on a CD. However, existing data is not overwritten. Therefore, take care that enough space is available on the CD.
    Note: Please note that - in the event of a hardware error - there may be problems with the backup if it is saved on the same drive as the original project. It is therefore recommended to select a different drive. In this case, do not forget to set the corresponding access restrictions for the respective target folder accordingly.
  • Delete old files before executing the next backup: deletes all backed up files from the backup directory before creating a new backup. This delete option is disabled for the backup media "DAT". Note also that the delete option cannot be used to delete the backup of the configuration data on the "parameterization" tab. NOTE: if the old files cannot be deleted within 300 seconds, the backup is canceled and a message is shown in the log viewer.
CAUTION:
  • If the target drive for the online backup is a network drive that is used with a network drive letter and the backup is started via the service, the backup does not work. Use UNC paths.
  • To backup data on a remote server the user must have adequate user permissions. A possibility is to add the responsible user to the local administrator group.
  • Directories that should be backed up must not contain umlauts or blanks. You can only use 7-bit-ASCII character set for the directories and data files.
  • There is also a restriction on the number of characters in the destination folder. If your backup fails with ”ERROR (-5) executing OnlineBackup !!!”, then reduce the number of characters in the entire path name of your output folder meaning rename or relocate your output folder.
  • The target path of the backup might not be the same as the target path of the value archivebackup.. The UNC paths under Windows must have write permissions in the DB directory.

Windows for example, D:/Backup, for Windows Tape 0; see the name in Start > Setting > Control Panel > Tape Devices > Properties

respectively for Windows 2000 see the name in My Computer --> Manage --> Removable Storage --> "Name of tape devices: for example, tape0" --> Properties --> Device Info.

Linux: It is highly recommended to refer to your system administrator. He knows the available devices and their path. Essentially are the following issues: append the tape, register driver and drive in kernel, create the device for the drive (different parameters are possible).

Make sure to initialize your DAT device before backup.

As an example use the this table. The following applies, depending on the operating system and the type of storage medium (change path names to suit the system):

Medium Linux Windows
Device Mount directory Backup directory Drive
Hard disk /dev/dsk/c201d0s1 /disc C:/Directory/ --------
MO (Magento Optical) disk /dev/dsk/c201d0s1 /disc N. A. N. A.
DAT tape /dev/dsk/c201d0s1 -------- -------- Tape0
  • Medium for backup: Here you select whether you want to save the data to tape (DAT) or "hard disk (HD), MO (Magneto Optical) or JAZ" (file system). Note that the medium can be a block device, for example,. /dev/hda3 but also a directory such as /backup under Linux.
    CAUTION: MO (Magneto Optical) drives cannot be used under Windows.
  • Automatic backup (Next automatic execution): Specify when the next backup should be executed. You can specify daily, weekly, monthly or yearly as well as the exact time (hours and minutes):

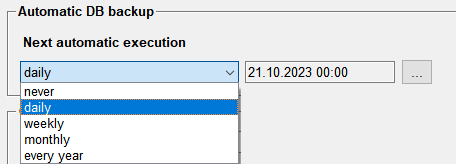

    Figure 2. Next automatic execution
  • Backup all not archived HDB datasets: Select this option to include all archive files that were not swapped out yet to the online- backup. Note that this option is independent of any set backup period.

Planning of backup

It makes sense to set the time for a periodic backup to "off-peak load times" when little data (messages) has to be buffered on the running system.

The system is more heavily loaded during online backup than during normal operation. This also applies for a short time after completion of the backup when bufferexd data has to be processed first.

Database queries for historical values such as trends are not processed during this time.

  • Automatic DB-backup: Here you set how often automatic backup is to be carried out (daily, weekly, monthly or annually).
    Note: If you activate the automatic backup, make sure that you restart the script "archiv_client.ctl". Otherwise, your backup is not executed correctly. You have to restart the script also if you deactivate and again activate the automatic backup since the timedFunc() was stopped and has to be restarted.
  • Next automatic execution: The button opens a dialog that allows the exact backup time to be entered.
  • Cancel DB-backup if: Here you can define the following conditions under which your backup is aborted:

Abort backup, if maximum time of x seconds was exceeded. The time period is unrestricted for a value 0. Values below 60 seconds are not considered.

Abort backup if free memory is less than x [MB]. The minimum value is 50 [MB] over the limit with which the Data Manager would go into emergency mode, usually 60 [MB]. If memory is insufficient, an error message is issued.

Abort backup if more than x messages are waiting in the buffer. If the value is 0, the number of messages is unrestricted. Each change to a value is, for example, a message. Messages in the buffer: for example, 30000 /5 * 60 equals 100 msg / sec. (average). The maximum is 500 msg/sec meaning 150000 messages (for 5 min.).

CAUTION: The automatic execution time must not be the same as the execution time of the valuearchive backup.
CAUTION: Backup mode does not check the virtual memory if you set checkMemory = 0 in the config file or specify a value < 0 in the DP for the element .EmergencyKBLimit.
  • Apply: Only now are your parameters activated for backup. This button flashes green when you have changed the settings so that you really apply the new parameters.
  • Close: Use this to leave the panel whereby your entries are cancelled.
  • Help: Opens the appropriate page of the online help.
  1. Select "HD/MO/JAZ" in the radio box as the storage medium.
  2. Click the button next to the input field for the storage destination.
  3. In the open dialog, select your desired directory.
  4. Click OK.
  5. Specify 12 hours for the backup time.
  6. Select "weekly" from the selection list for automatic backup.
  7. Clicking on the ellipsis button, opens the following dialog:
    Figure 3. Dialog for Time of Backup
  8. Enter 01.15 and click OK.
  9. Enter 5 minutes for the maximum time for backup.
  10. Select 58 MB for free memory.
  11. Specify 30000 for the number of messages in the buffer.
  12. Click Apply.
