Configuration - Insights Hub (Cloud) Part 2

In order to work with uploaded values, create a variable for each data point that you want to link with an aspect. Here two aspects are created for the data sources Pump1 and Valve1. The variable types for the data points are added to an aspect.

For more information on Insights Hub, see the Insights Hub help https://documentation.Insights Hub.io/#/kiosk.

  • Open the Asset Manager on the left side. Select Aspect types from the menu on the left side.

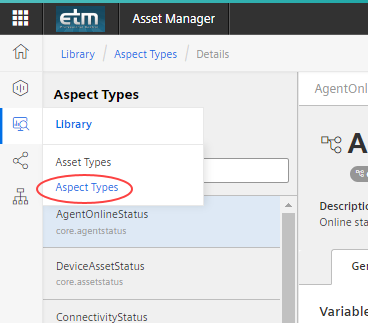

Figure 1. Insights Hub Configuration - Aspects
  • Click on "+ Create aspect" in order to create a new aspect Aspect_datasource_pump1.

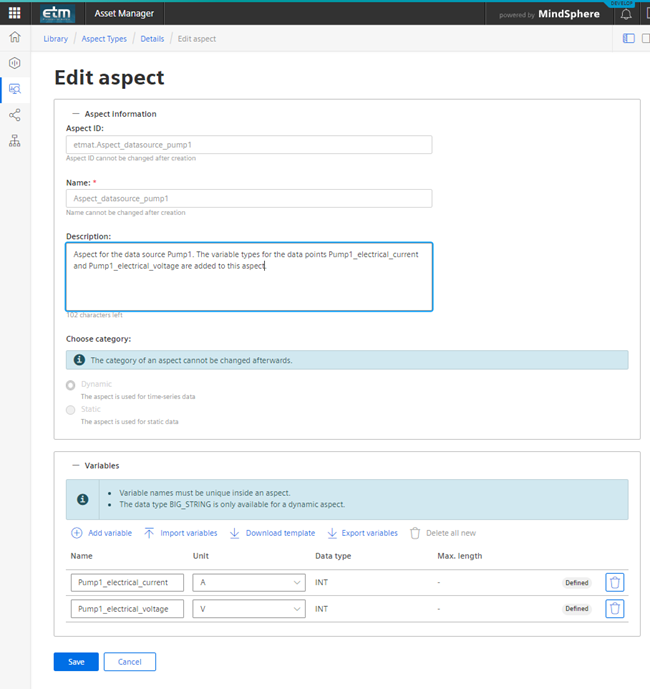

Figure 2. Insights Hub Configuration - Edit Aspect and Add Variables
CAUTION: The VariableType and the Unit must be same as in the linked WinCC OA data point - see figure above
  • Create a variable for each Insights Hub data point that you want to link with an aspect and then with WinCC OA data points. After saving a variable, click again on the Edit aspect on the top right corner of the window in order to add a second variable. Here two variables Pump1_electrical_current and Pump1_electrical_voltage are created.

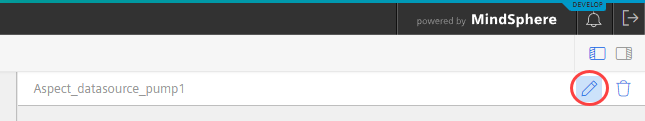

Figure 3. Edit Aspect
  • Save this aspect.
  • Then create a second aspect for Valve1 datasource and two boolean variables for Valve1_closed and Valve1_open:

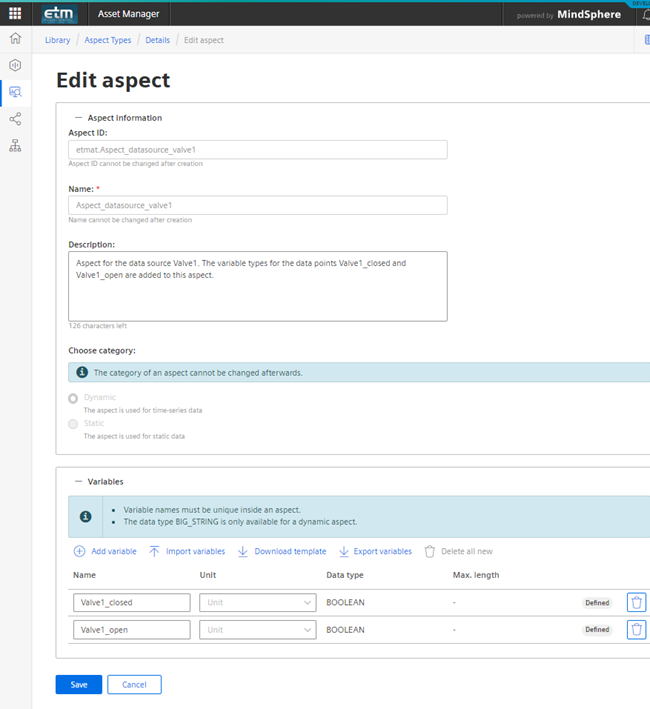

    Figure 4. Aspect_datasource_valve1

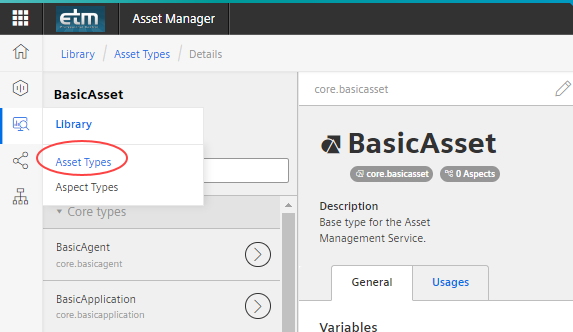

  • Select Asset Types from the menu on the left side. Click on +Create type in order to create a new type for the datasource Pump1 and enter the name Type_for_Datasource_Pump1 for the type.
Figure 5. Create type

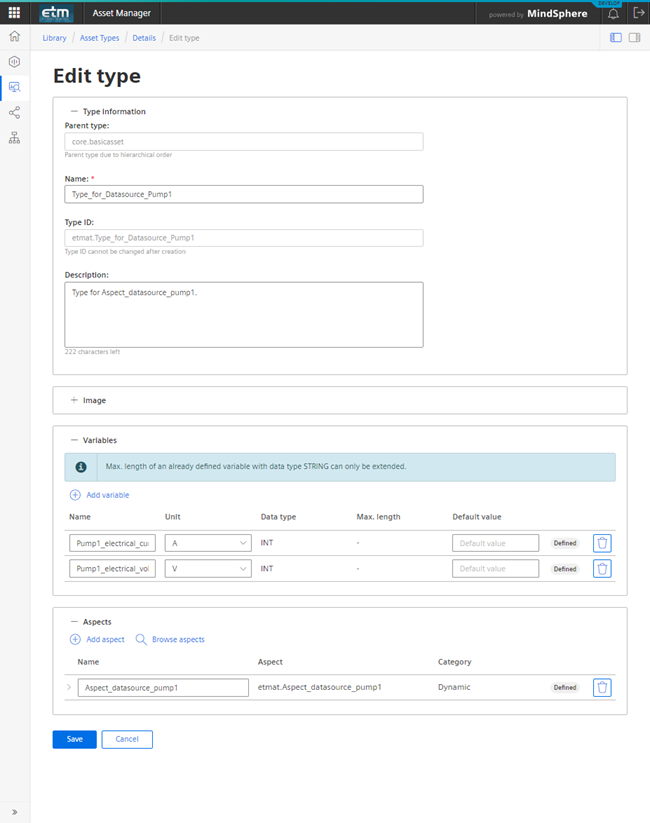

  • Select all aspects that an asset of this type should have from the Aspects combo box and add the variable types. Save this type.
Figure 6. Insights Hub Configuration - Create Type
  • Select the Assets from the menu on the left side.
    Figure 7. Select the "Assets"
    Click on + Create asset in order to create a new asset Pump1 that contains the Insights Hub data points that are connected to WinCC OA .
  • Select the created type and fill in the information for the asset:
    Figure 8. Insights Hub Configuration - Select Asset Type

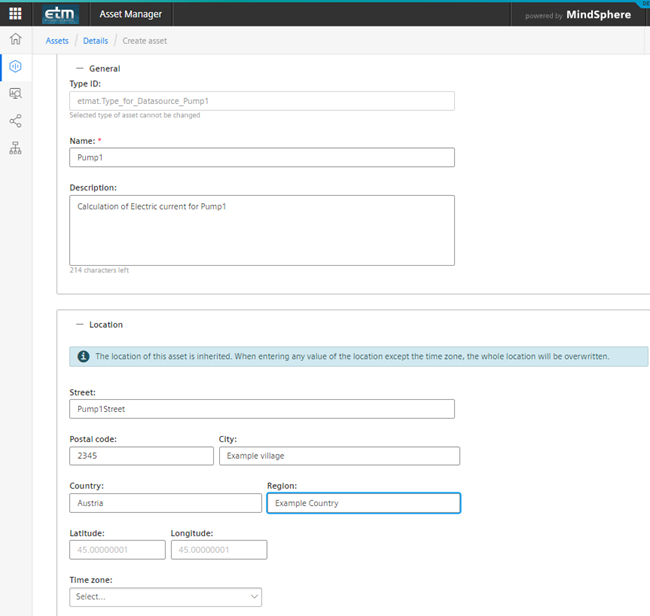

    Figure 9. Insights Hub Configuration - Add Asset

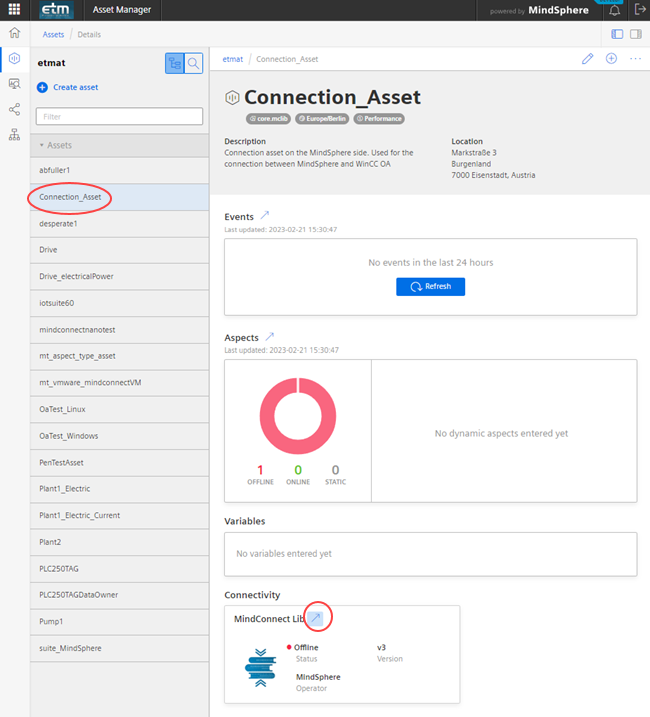

Figure 10. Asset "Connection_Asset" in the Asset Manager

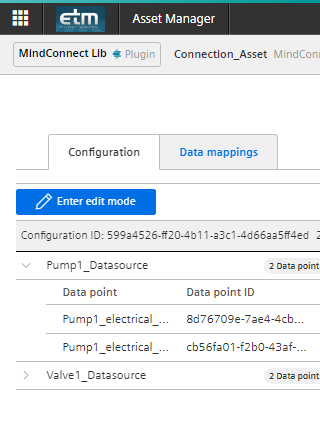

Figure 11. Insights Hub Configuration - Connection Asset
Figure 12. Insights Hub Configuration - Data Mappings

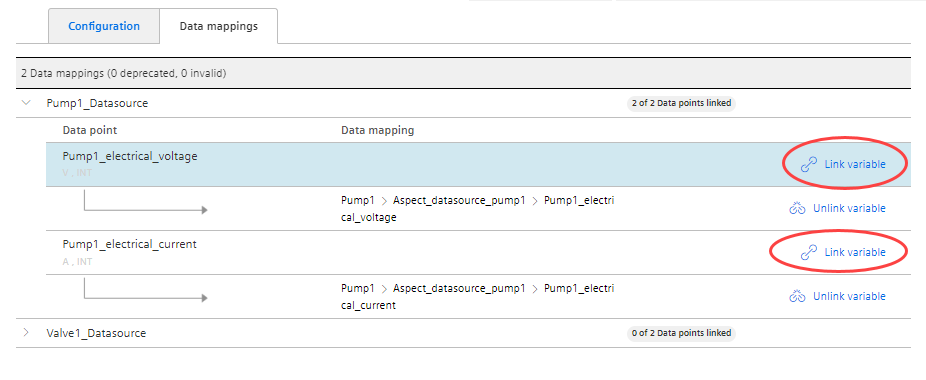

Select the asset Pump1 by clicking on the Change and then <Up and by selecting the asset. Then select the variable by enabling the Link variable option.

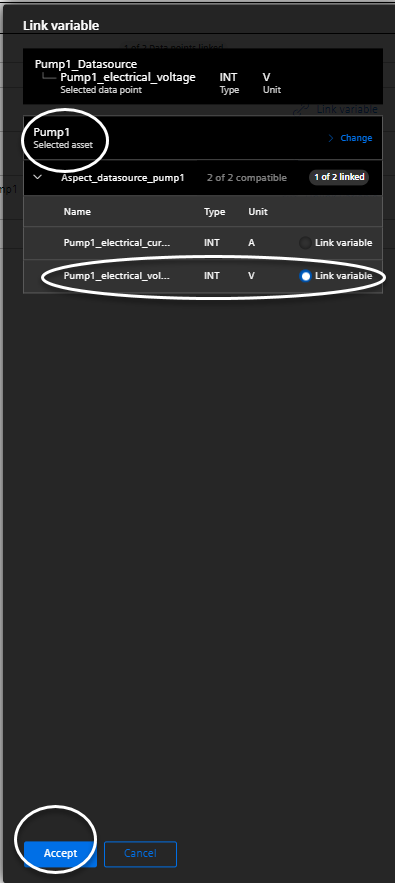

Figure 13. Insights Hub Configuration - Link Variable

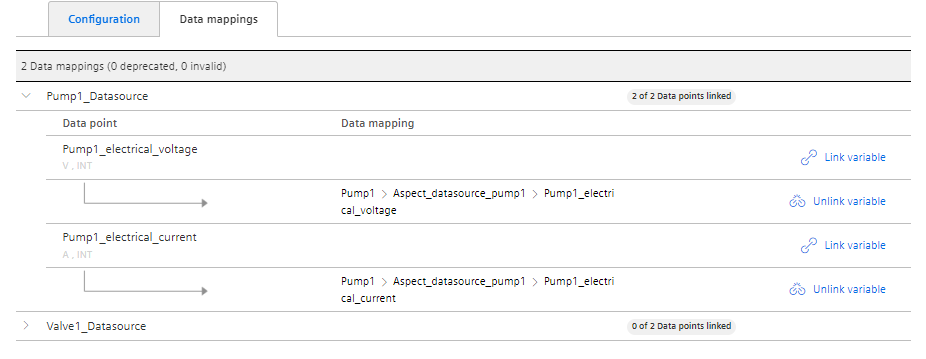

Figure 14. Insights Hub Configuration - Linked Data Points
