System Permissions

The system Permissions are used to define authorization levels for different actions. The level in the System authorizations panel defines what level (for example, 4 in the panel below) a user has to have to perform a specific action.

The authorization level is saved in the _System.Auth data point element so that the level can be variable and is not hard-coded in the standard panels like PARA, GEDI. When a user wants to, for example, create a data point type or a data point, the system checks if the user has the necessary authorization level for this. This is done by the Event Manager. The used authorization level is read from the _System.Auth data point and forwarded to the getUserPermission() function.

The system authorizations are set by entering the relevant authorization level in the System authorizations panel. The System authorizations panel is opened via the System Management panel. The panel is shown in the figure below. The defined authorization means that only the users that have this authorization level (e.g. level 4, see figure System authorizations panel for assigning system authorizations.) may create, update and delete data point types etc.

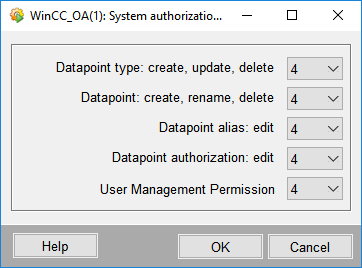

Figure 2. System authorizations panel for assigning system authorizations

The table below describes the different options and descriptions of the System authorizations panel as well as the _System.Auth data point. The authorization levels that can be defined for the different actions in the System authorizations panel above are saved in the _System.Auth data point. If you, for example, define an authorization level for creating, updating and deleting data point types, the level is saved in the _System.Auth data point in the DpType element.


Option	Description
Data point type	Users at the specified level are allowed to create, change and delete data point types. The authorization level is saved in the _System.Auth.DpType:_original.._value element.
Data point	Users at the specified level are allowed to create and delete data points. The authorization level is saved in _System.Auth.Dp:_original.._value element.
Data point alias	Users at the specified level are allowed to edit data point aliases. The authorization level is saved in _System.Auth.DpAlias:_original.._value element.
Data point authorization	Users at the specified level are allowed to change the authorization config. All users can create it. The authorization level is saved in _System.Auth.DpAuth:_original.._value element.
User Management Permission	Specifies the Administrator rights for the User Administration. A user who possesses the bit that is set for the User Management Permission possesses the administrator rights in the WinCC OA User Administration.
