Activation

This chapter describes how to activate a license.

  1. Open the license information panel via the WinCC OA console or Project Administration - see also chapter Overview .
  2. Open the Operations tab - see figure below.
  3. Load a license ticket which you received per e-mail by clicking the button on the left side of the panel - see figure below.
  4. Add the license ticket number to the text field - see below. If you want to load several license tickets, add the ticket numbers each on a separate line - see figure below.
    Figure 1. Load the license ticket
  5. Then click on OK on the Add tickets panel
  6. Select the license options you want to activate from the table and click on Activate
    Note: You can select multiple licenses by holding the CTRL key and selecting the lines.
    Figure 2. License Options

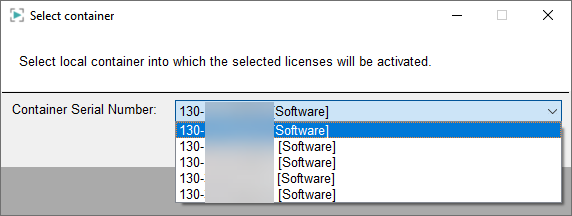

  7. Then select a container from the combo box.
    Figure 3. Select a Container
  8. Click on OK to activate the license options.
  9. Open the Overview and the license informations are shown:
    Figure 4. Activated License Options
