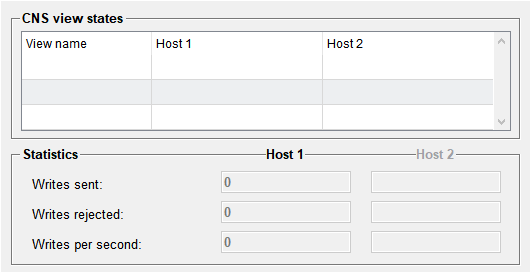

State Details
Details about the current state of the connection as well as general message statistics.
CNS view states
Status of the CNS views used for the MQTT Publisher. The status of the CNS views is only indicated if CNS views are used within the publisher configuration.
- View name
- Name of the view that is currently published.
- Host 1 / 2
-
State for the selected view for Host1 as well as Host 2 in case of a redundant configuration.
Available states are:
State Description 0 Undefined 1 Connected + OK 2 View delta sync running 3 Full sync running 4 CNS view not found 5 Dist not connected 6 Dist not connected, view in address space
Statistics
General message statictis for the MQTT Publisher connection(s).
- Writes sent
- Number of writes that were sent to the broker.
- Writes rejected
- Number of writes that were rejected by the broker.
- Writes per second
- Number of writes per second.
