"curveScaleFormat", "curveScaleFormatX"

Sets the format for the scale range (value range) of a trend curve. The attribute "curveScaleFormatX" sets the format for the XY trend curve of the X part.

Synopsis

setValue(string shape, "curveScaleFormat", string curve, string format);

getValue(string shape, "curveScaleFormat", string curve, string format);

shape.curveScaleFormat(string curve, string format);

Parameters

Parameter Description
shape Name of the object
curve Name of the curve whose format is set
format

The format that should be set, for example, "%6.2f" (two decimal places) (for more information on the different formats, see chapter sprintf()). If the specified string "" is empty, the autoFormat ("%g") is used.

Note: Leading zeros are never displayed in the trend scale.

Description

Sets the format for the scale range (value range) of a trend curve.

Example

The example below sets the format of the scale range to "%06.1f". This means that the value is displayed with one position after decimal point.

main()
{
  this.curveScaleFormat("Curve","%06.1f");
}

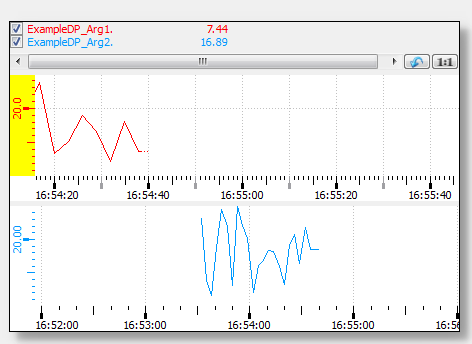

Figure 1. The Format of the Scale Range (ExampleDP_Arg1) was set to %06.1f and One Position after Decimal Point is shown

Assignment

Trend
