"headerHidden"

Sets whether the header is shown or not.

Synopsis

shape.headerHidden(bool check);

Parameter


Parameter	Description
shape	Name of the object.
check	Declares if the header is shown.

Description

If it's TRUE, the header is hidden.

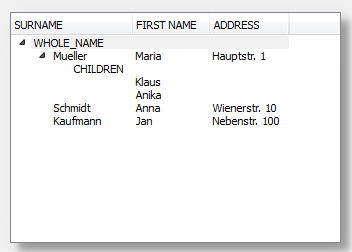

Figure 1. The Header is shown for the Tree Widget

Assignment

Tree widget
