User-activated events and functions

Different Events can be executed when clicking on an graphics object. The available events depend on the object type.

WinCC OA distinguishes the following events:

Events: Action
Clicked Left-click
DoubleClicked Double-click left
Changed Click on an item, for example, click on an item in a list.
RightMousePressed

Right-click

Only one RightMousePressed script should run in a manager at a time. If a RightMousePressed script runs, the script will be stopped before the new script will be started.

MousePressed Mouse key pressed
MouseReleased Mouse key released

The following Functions can be configured for each of these events:

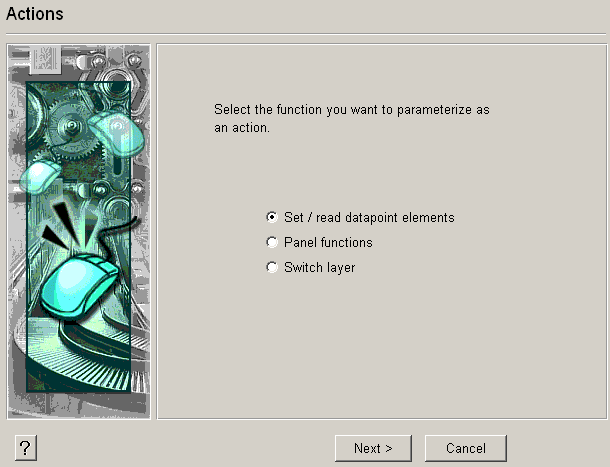

Figure 1. Actions and function selection
