Input calculation tab

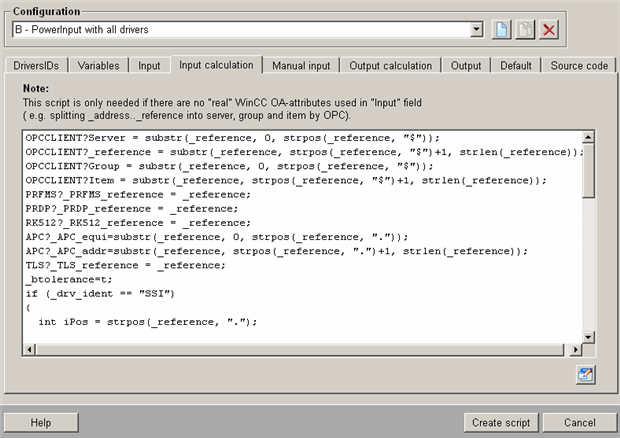

In this tab you define a script (optional) that performs a calculation on the current values of the DPEs before they are displayed in the configuration panel (see PowerConfig configuration at the data point). The script that reads the current values of the DPEs is located on the Input tab. As an example, the _address.._reference attribute for an OPC peripherals address is split into Server, Group and Item, and then written to the variables. This means that each of these parts can be used as a dynamic attribute in the "Manual input" section.

To edit this script, click on the lower button on the right, or double-click in the script field, to open the text editor.
