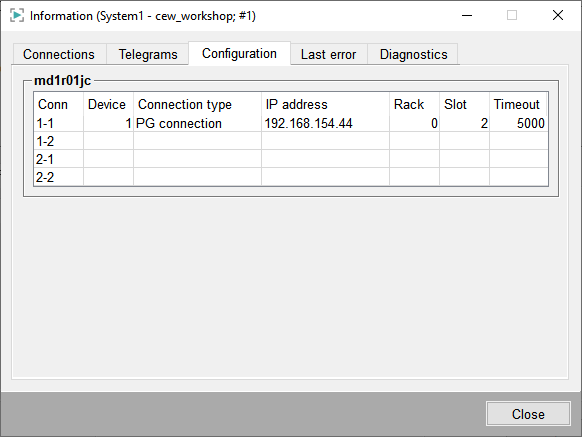

Information Panel - Configuration

The configuration for all connections of the internal connection data point is shown on the Configuration tab of this information panel.
