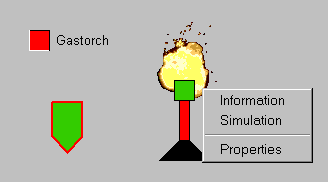

Bit_Condition, Filter, Gastorch

These three symbols are all represented by the data point type BIT_CONDITION. They allow you to display the operational state (On/Off) or a fault:

Equipment operational panel Bit_Condition

In this panel you can display the operational state (On/Off) or a fault:

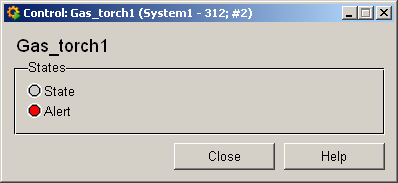

Figure 1. Control panel

Information panel Bit_Condition

The information panel contains details on the associated data point elements. Please see the chapter data point types for the symbol catalog (see BIT_CONDITION) in the PARA module for a description of the data point types and their elements.

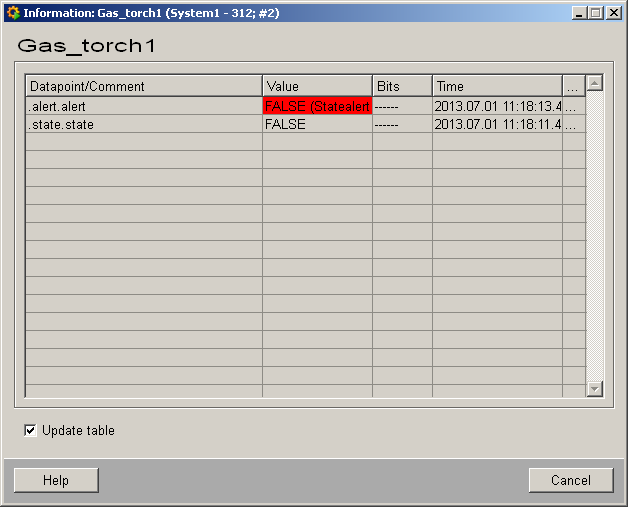

Figure 2. Information panel

The table contains all data point elements either with their name or description, their values (contents), status (bits) and source time. The "..." buttons open detailed information on the event or alert (see alert table).

Simulation panel Bit_Condition

Right-click on the symbol or select the Simulation menu to open the following panel for simulating a peripheral device. This panel can be used to set data point elements by hand: in this panel you can simulate the operational state (On/Off) or a fault (see Simulating operational states). You can find the associated operational state for the following panel in Equipment operational panel.

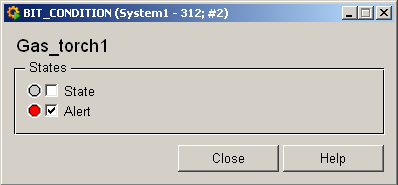

Figure 3. Simulation panel
