Statistics

This tab provides statistical information on data sent and received. Any information applies to data values not messages.

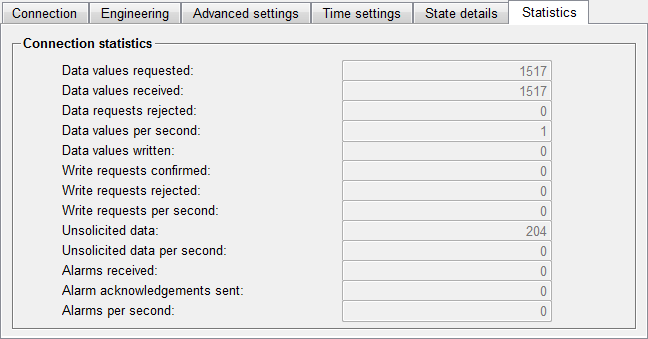

Figure 1. Statistics tab

Connection statistics

Following statistical data is displayed:

  • Data values requested: The number of requests for data values sent since driver start

  • Data values received: The number of data values received from read requests since driver start

  • Data requests rejected: The number of requests for data values rejected since driver start

  • Data values per second: The number of data values received per second, measured during the last statistical interval

  • Data values written: The number of requests for writing a data value sent since driver start

  • Write requests confirmed: The number of requests for writing a data value confirmed since driver start

  • Write requests rejected: The number of requests for writing a data value rejected since driver start

  • Write requests per second: The number of requests per second for writing a data value, measured during the last statistical interval

  • Unsolicited data: The number of data values received unsolicited since driver start

  • Unsolicited data per second: The number of unsolicited data values received per second, measured during the last statistical interval
