Configuring the DBLogger

A graphical user interface is provided for configuring the DBLogger (the panel DBL_Para.pnl). In this panel you can identify the databases for the DBLogger and define the tables (with specification of the table type) and archive groups using the four tabs Database, Table type, Table and Archive group. Open the configuration panel via the System management panel with the button DBLogger on the Database tab. The option is only available if the DBLogger add-on was added to the project (see Installation of the DBLogger).

The configuration panel can be found under:

<wincc_oa_path>/InfoSrv_3.19/panels/vision/is/DBL_Para.pnl

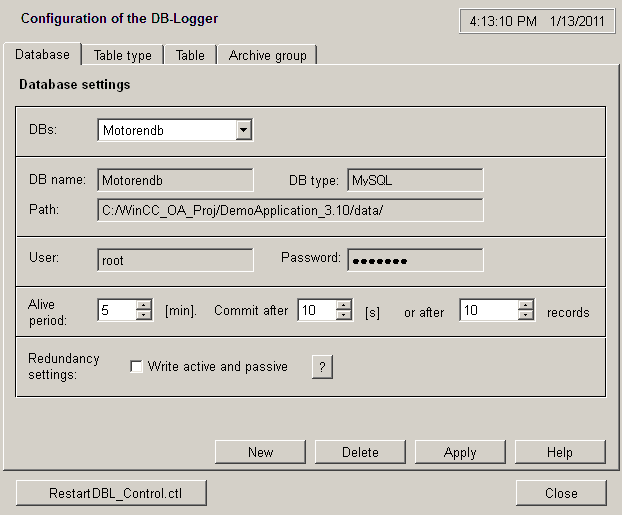

Figure: Configuration panel for the DBLogger
