Plantmodel tab
On the Plantmodel tab you can filter by view names or node names (see Plantmodel Editor, basics chapter). Each node can be selected. The ID path of the selected node is passed and can be addressed like any data point e.g. by using dpGet or dpSet.

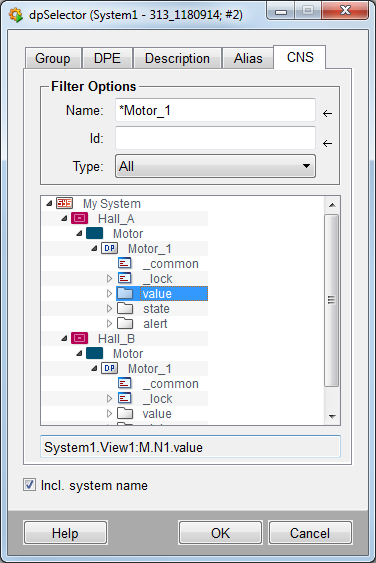

Figure: Plantmodel
Name
Enables to filter by view names or node names. In this example it is filtered by node with name alarm. In the tree view the result is listed. It is also possible filter by names with wildcards.
The text field below displays the associated data point element for each selected alias.
Id
Allows to filter by the ID of the nodes. It is possible to filter by IDs with wildcards.
Typ
Via this combo box the type (either structure or DP) can be defined.
Incl. system name
The system name is added to the cns path in the text field.
| Example | Description |
|---|---|
| Working with the DP selector | How to select a data point. |
