Configuration Overview

The Disaster Recovery System Configuration panel provides step-by-step configuration and contains the server information and basic configuration of the disaster recovery system.

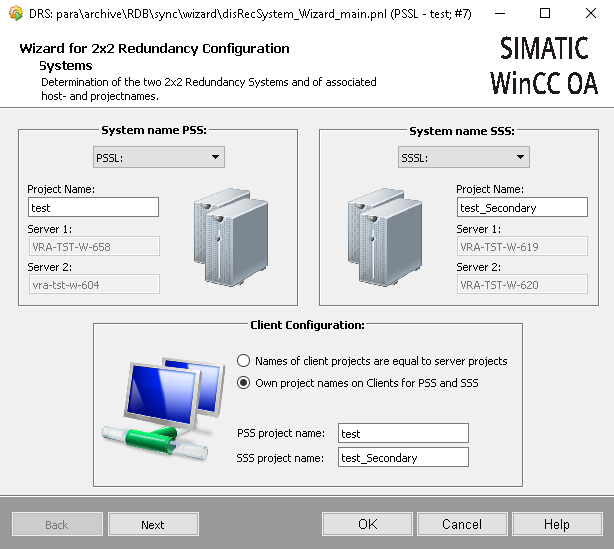

Figure 1. Disaster Recovery System Configuration Wizard Window with Sample Data

The following steps are performed during configuration:

  1. Configuration - Step 1 - Systems
  2. Configuration - Step 2 - Online Values
  3. Configuration - Step 3 - Managers
  4. Configuration - Step 4 - Internal DPTs Synchronization
  5. Configuration - Step 5 - Project File Synchronization
  6. Configuration - Step 6 - Activation
  7. Configuration - Step 7 - NGA Backends (Only if DRS - NGA is used)

Navigation in the Wizard Panel

The Back and Next buttons allow you to jump to either the previous or the next configuration step. The configurations of the individual steps are retained. If a mandatory entry is missing in a configuration step, you cannot switch to the previous or next step until the missing entry has been made.

Click the OK button to save the configurations of all steps and close the wizard. Before the configurations or configuration changes can be applied, the CTRL Manager that invokes the Disaster Recovery System script must be restarted. This happens automatically after the confirmation prompt is confirmed with Yes before the wizard is closed. If you click No at the confirmation prompt, the changes will not be applied until the CTRL Manager is restarted.

Click the Cancel button to discard all configuration changes and close the wizard.

Click the Help button to open this chapter of the WinCC OA online help.
