Configuration - Step 7 - NGA Backends

Note: This step is shown for DRS projects with NGA.

To configure the NGA (Backends) for DRS, perform the following steps:

  • The importer is automatically configured in the background (DP created, DPE values ​​set) using the 2x2 configuration wizard: If the Sync check box is checked, importer DPs are automatically created in the background on PSS+SSS. If the check box is unchecked, the DPs will be automatically deleted. Check the box as follows:

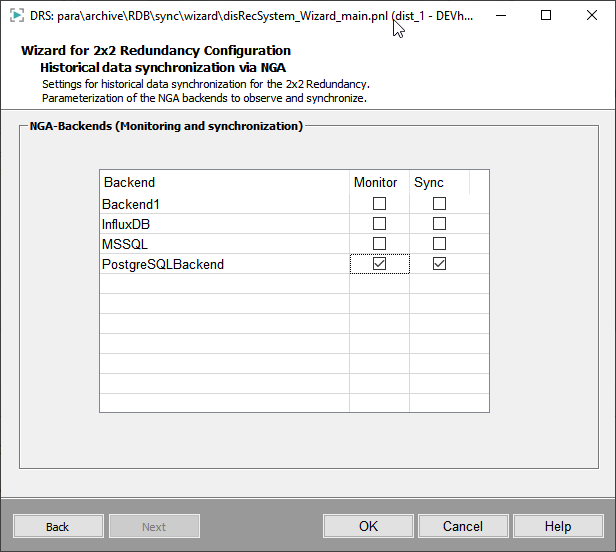

    Figure 1. Monitor and Sync check boxes

    Use the Monitor check box if you want to monitor a backend. It is monitored whether a frontend has a connection to a backend and the backend has a connection to the database.
