To import the historical values and alerts from HDB/RAIMA to NGA, an importer is required. This help describes the NGA importer and how to select and import data.

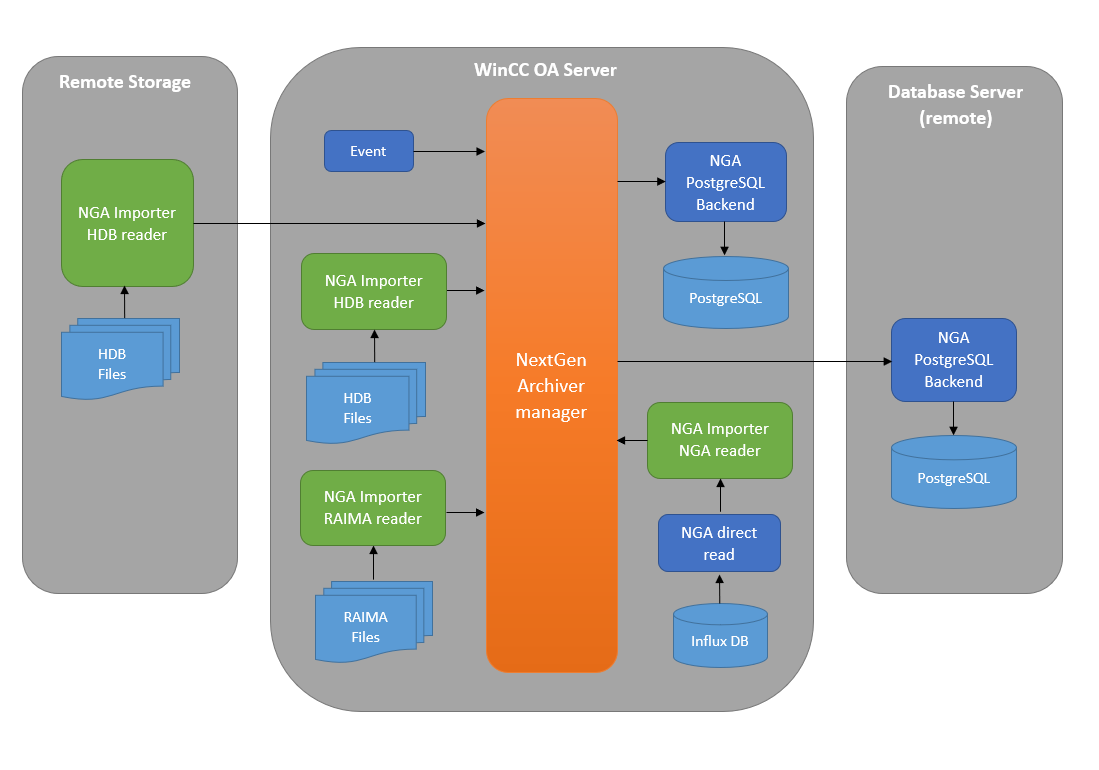

Figure 1. NGA Scheme
To import the historical values and alerts from HDB/RAIMA, enable the importing functionality of NGA with the check box Automatic import on project start in the
panel NGA Migration:

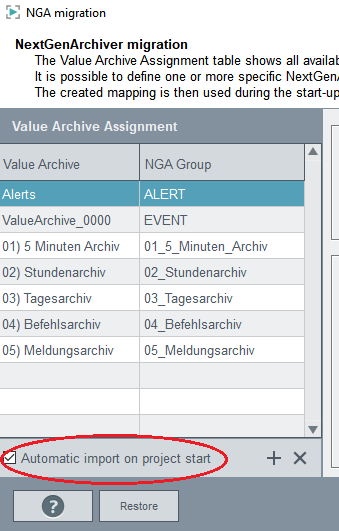

Figure 2. Check box "Automatic import on project start"
Note: If you do not use the option Automatic import on project start, then you must manually activate the Importer in the Importer section
of the General tab.
Important: Under Linux, the running lm_ip service is a prerequisite for the importer. Check whether the lm_ip
service is running. If not, use the command sudo <winccoa_dir>/bin/lm_ip -a lockmgr -f 600 to start it.
Open the Importer panel via System Management > Database > NGA Importer.
Note: If you do not use the option Automatic import on project start, then you must manually activate the Importer in the Importer section of the General tab.Important: Under Linux, the running
