STD_VALUES
These symbols are used to display values in different forms.
Symbol | Symbol name | Description |
value_1 | Displays the online value of the data point element with its unit. | |
value_2 | Alternative display. Displays the online value of the data point element. | |
value_2b | Alternative display (font). Displays the online value of the data point element. | |
value_2c | Alternative display (font). Displays the online value of the data point element. | |
value_3s | Alternative display (font without frame). Displays the online value of the data point element. |
value_1
This symbol, like the others, is used to display values.

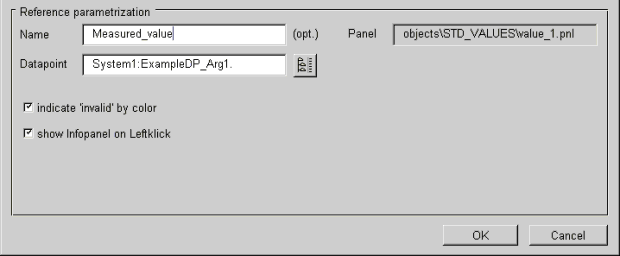

The following options are available:
indicate "invalid" by color: Colors the background blue (color invalid) if values are invalid (if invalid bit is set).
show Infopanel on Leftclick: This option allows you to open the same information panels in Vision as with the STD_INDICATORS (see bar_1).
