State details

This tab provides details on the respective connection state.

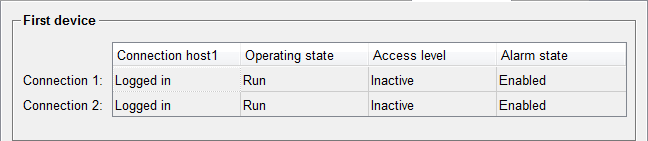

Figure 1. State details tab

Connection states - details first device

Connection host 1

Shows the connection state of the first and, if configured the redundant connection.

  • Logged out
  • Logging in
  • Logged in
  • Logging out

Operating state

Shows the current operating state of the PLC.

  • Run
  • Stop
  • Startup

Legitimation level

Shows the legitimation level of the respective connection. Depending on the access level a password may be necessary. The connection is only legitimated if the password is given (see Advanced settings tab). Otherwise, access to data is denied.

  • Invalid
  • Failsafe
  • Full
  • Read/Write
  • Read
  • Inactive

Security

This shows the security set for the connection. This is an enum value, and can have the following values:
  1. 0..None
  2. 2..CSI
  3. 4..TLS
