PM-SERVER Configuration

The PM-SERVER communicates with the other components. In order for the PM-AGENT to serve as an interface and PM-ANALYZE to provide data, the PM-SERVER must be configured.

Note: The PM-SERVER has own archives and the values are saved there. The current value is saved in Tags online archive and all values in the Tag archives as well as all alerts in the Alarm archives.

If you are using an older PM Add-ons version or having troubles with the connection/communication, add the following registry entries: By using these entries, the current TLS version is automatically used:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\.NETFramework\v4.0.30319:

Table 1. Registry entries
SystemDefaultTlsVersions	SchUseStrongCrypto
Type = DWORD Value = 1	Type = DWORD Value = 1

Select a PM Agent Station and enter the name for the station.

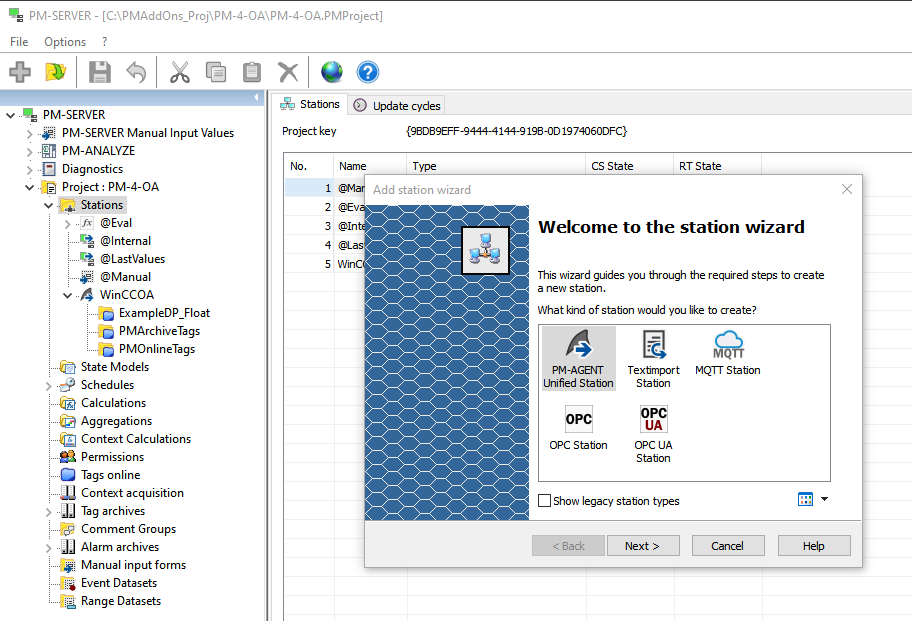

Figure 1. Create a Station
Select the settings such as System Type:Local System etc. according to your needs.
Click on Next and you can select WinCC OA as the target runtime here. Selecting WinCC OA means that the port is already set correctly for the PM-AGENT in WinCC OA (default HTTPS port):

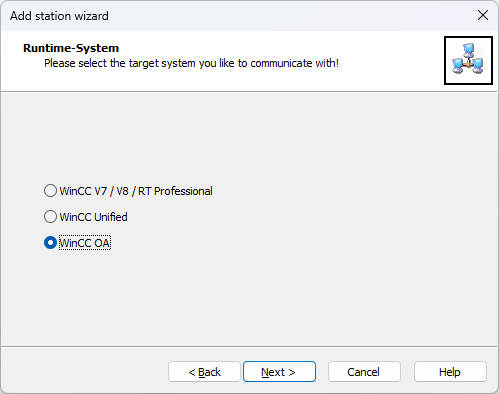

Figure 2. Select WinCC OA as the target runtime
A summary is shown.

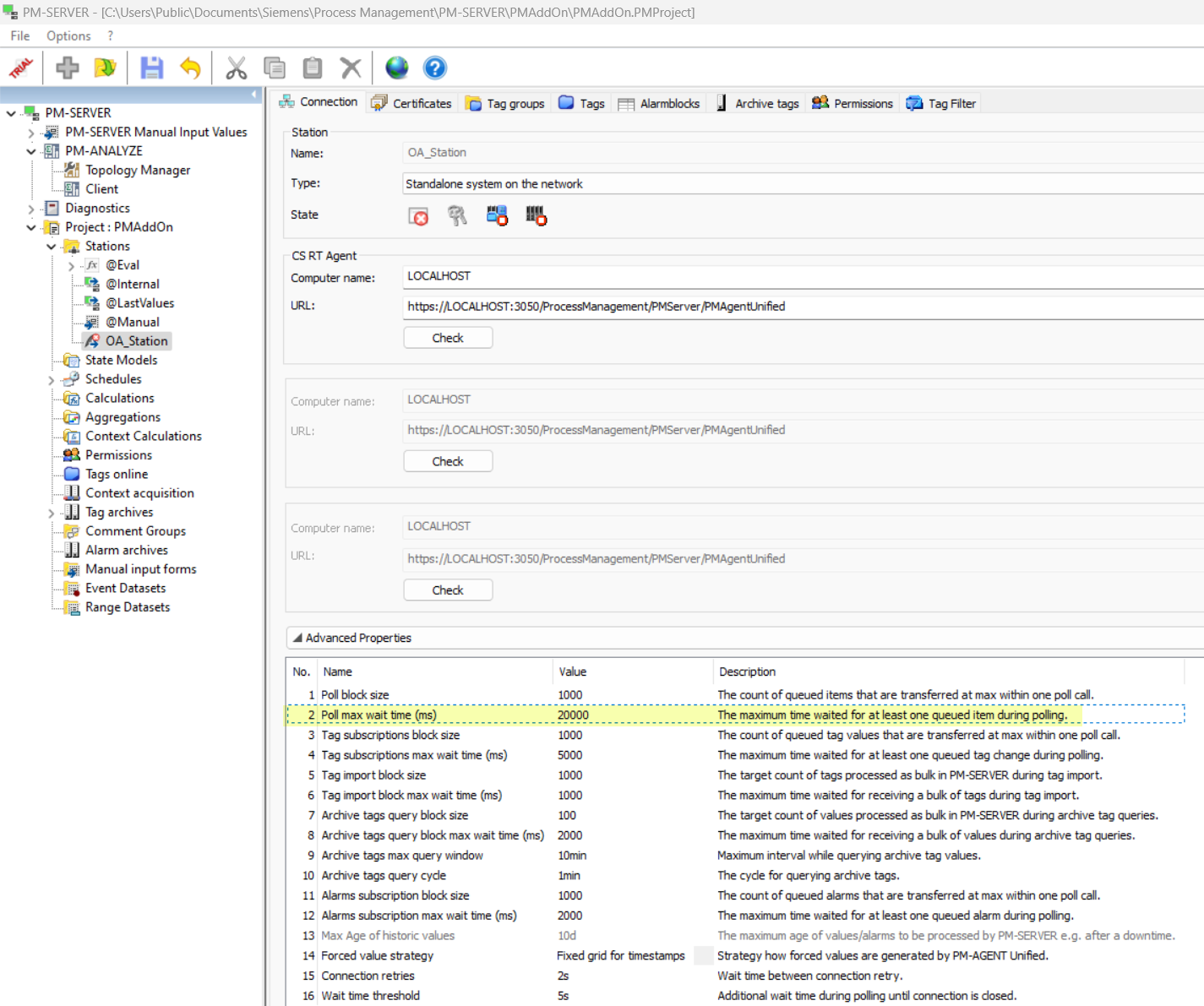

Under a New Station on the Connection tab, a Default-URL is automatically shown. Configure the URL: https://LOCALHOST:portnumber. Certificates must be accepted for HTTPS.

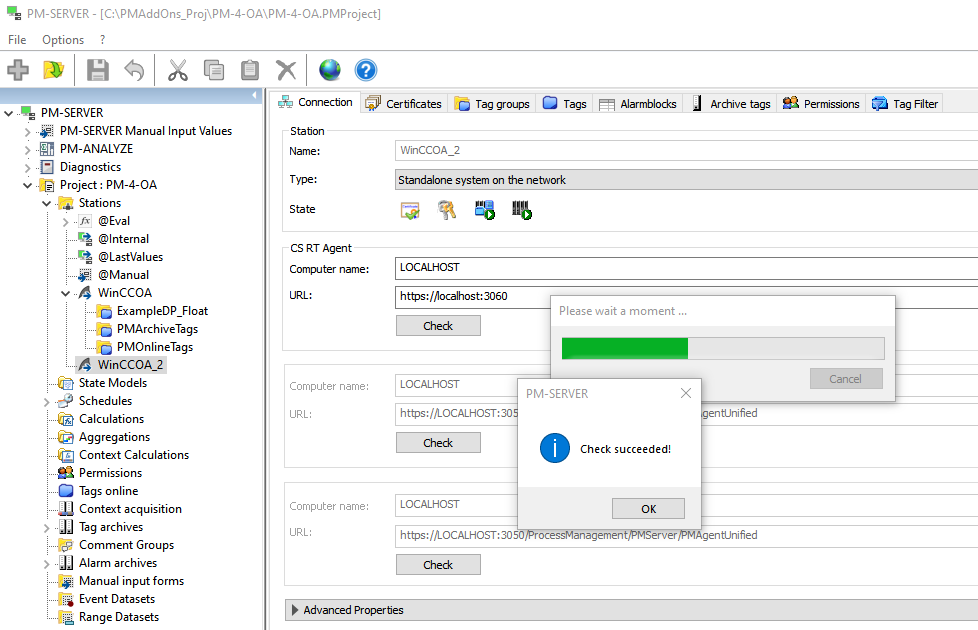

Figure 3. Configure URL
Check if the connection works - see the figure above.
Tag Archives contain values. Under Tag archives create a new tag archive via New Tag archive.

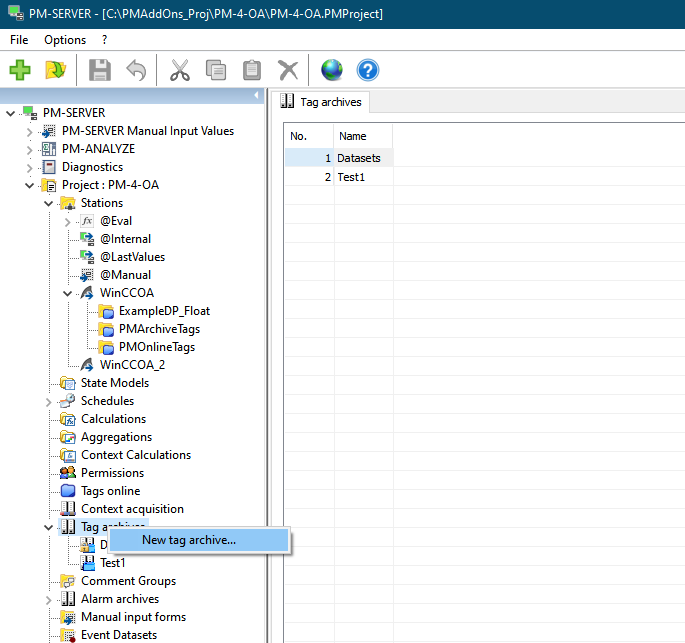

Figure 4. Add a new Tag Archive

If necessary, you can change the name of the archive later on the General tab:

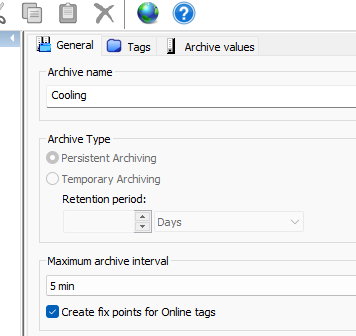

Figure 5. Change the archive name
- Select the archive type Persistent Archiving for the new archive:
  Figure 6. Select the archive type
- Select the created station. By default all stations are selected.

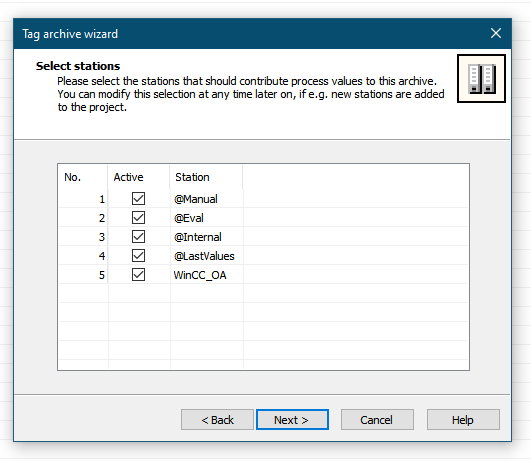

  Figure 7. Select Stations
- Add tags (data points):

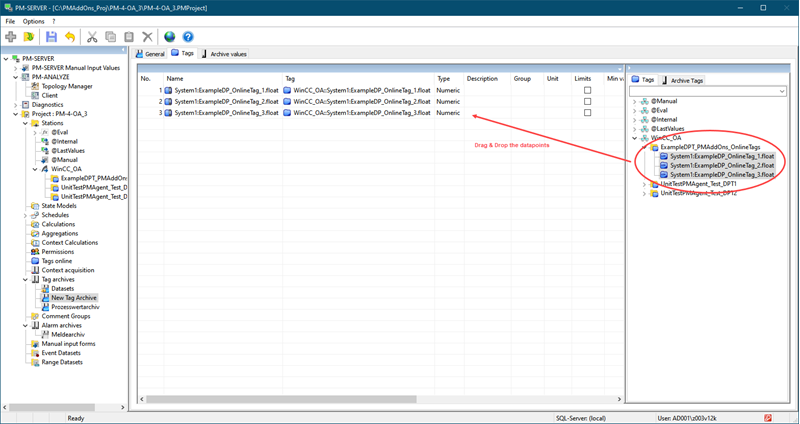

  Figure 8. Add Tags (Data points) via Drag&Drop
- For more information see the PM-SERVER help. You can open the help via the help button of the wizard.
In order to display WinCC OA values, tags must be imported. Import the tags via Stations > Import Tags

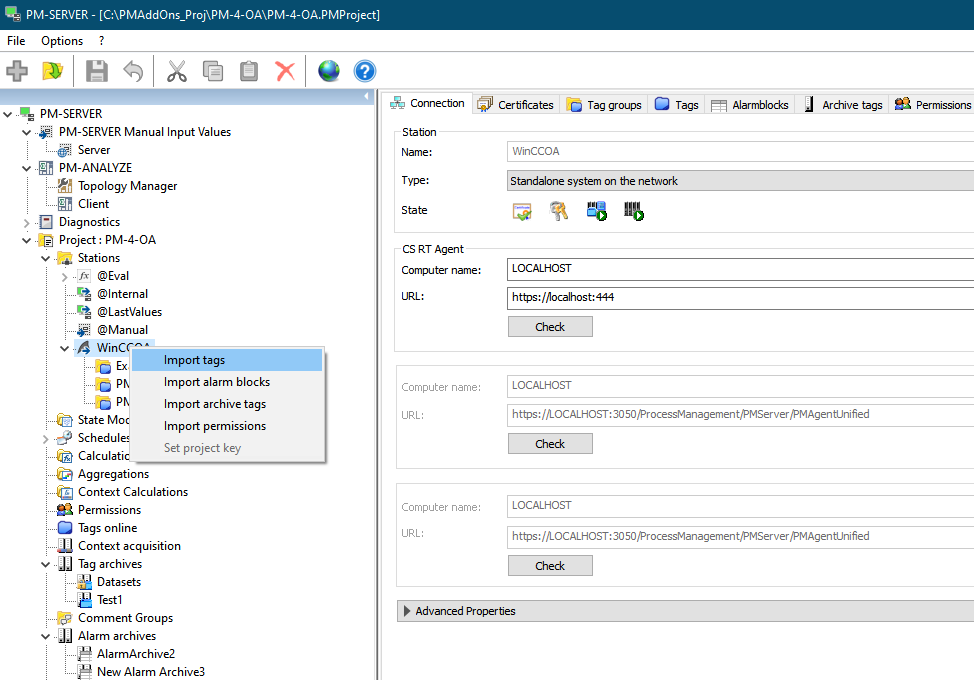

Figure 9. PM-Server - Import Tags
In order to display alerts, create an alert archive via New alarm archive. In the mapping for the alerts, the attributes 1 to 6 (marked yellow) are shown by default. The other attributes must be imported in order to display them. For more information see the PM-SERVER help. You can open the help via the help button of the New alarm archive wizards.

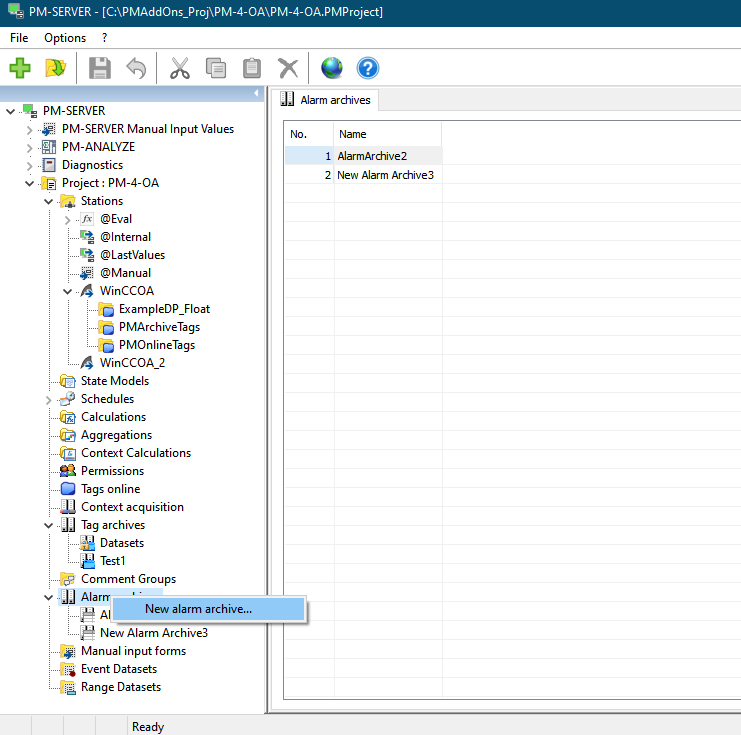

Figure 10. Add an Alarm Archive
Adapt the columns of an alarm archive:

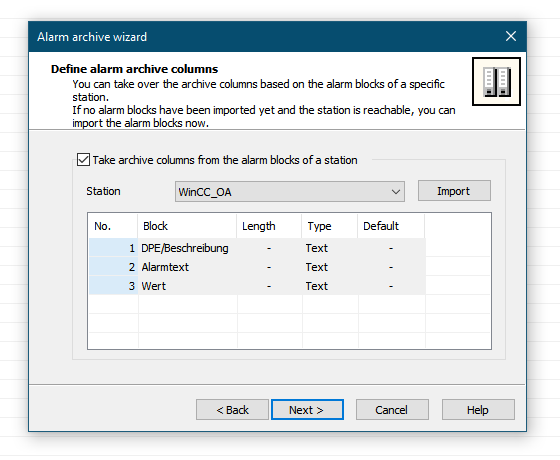

Figure 11. Define Alarm Archive

PM-SERVER - New Values

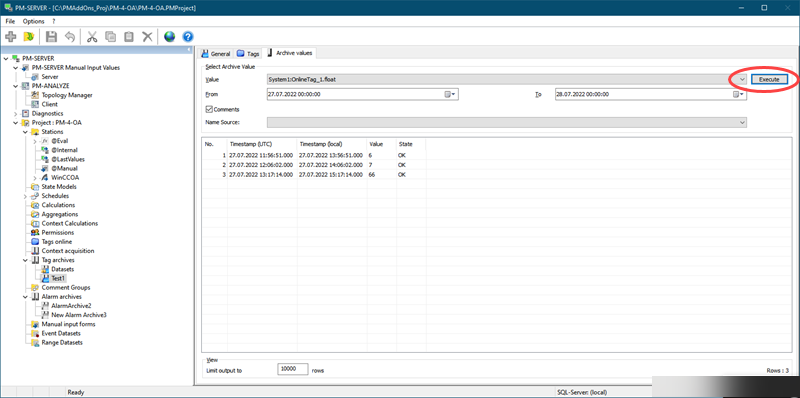

Note: To display new values, you must click on the PM-SERVER on the Execute button under Tag archives/[Tagarchive] or Alarm archives/[Alarmarchive]
