"holeFactor"
Defines the size of the hole of the charttypes Donut and DonutBars.
Synopsis
void shape.holeFactor(float factor)
Parameters
| Parameters | Descriptiom |
|---|---|
| factor | factor in the range 0.0 .. 1.0 |
Description
A factor in the range 0.0 .. 1.0 which defines which percentage of the diameter of a chartType Donut or DonutBars is used as the innermost hole. This value can be used to create ring shaped charts instead of pie shaped charts (set this to 0.0 for a pie chart).
Example

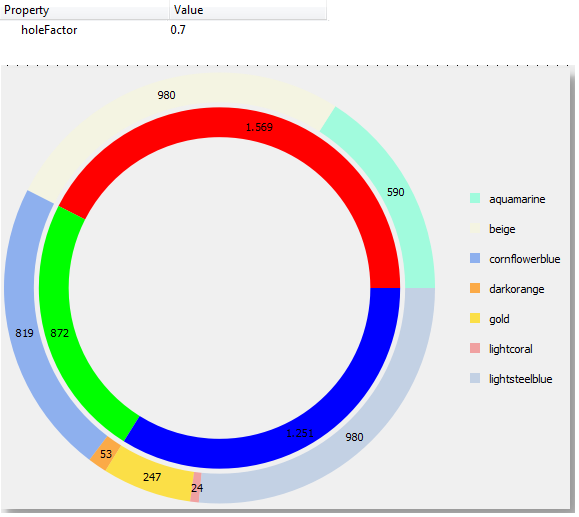

In the following example, the "holeFactor" was set to 0.7. This creates an annular chart.

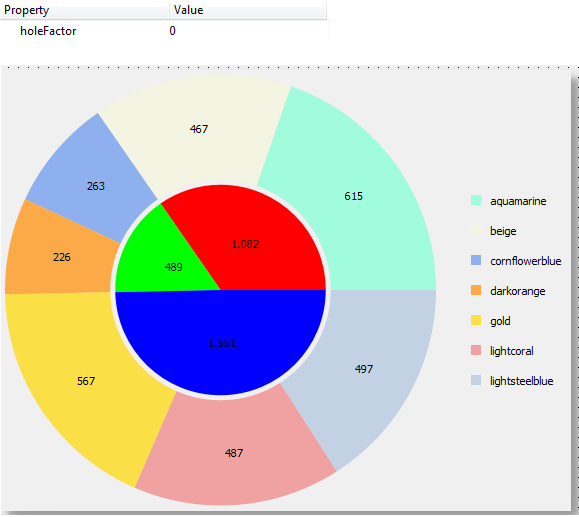

In the following example, the "holeFactor" was set to 0.0. This creates a pie chart.
