"setSeriesLineColor"
Used to define which color the line of a series should have.
Synopsis
void shape.setSeriesLineColor(int series, string color)
Parameters
| Parameter | Description |
|---|---|
| series | number of the series |
| color | the color, that is selected |
Description
Specifies the line color of the border of chart types with filled items (for example Bars) or the line color of a series when shown as line (see "setSeriesAsLine"). Only static colors are allowed.
Example

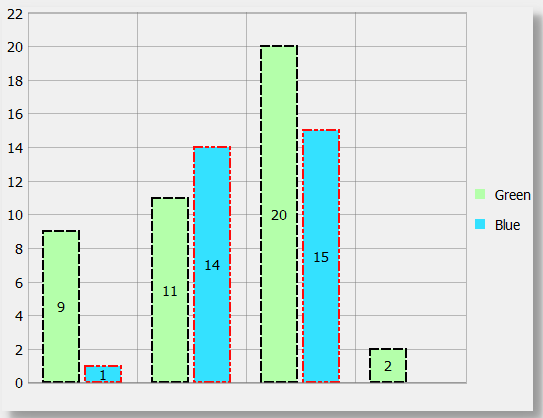

The color of the borderline of the series "Blue" was changed to red.
main()
{
dyn_float one;
one[1] = 9;
one[2] = 11;
one[3] = 20;
one[4] = 2;
this.addSeries(one);
this.setSeriesFillColor(0, "{180,255,170}");
dyn_float two;
two[1] = 1;
two[2] = 14;
two[3] = 15;
this.addSeries(two);
this.setSeriesFillColor(1, "{52,225,255}");
this.setSeriesName(1, "Blue");
this.setSeriesName(0, "Green");
this.setSeriesLineType(1, "[dash_dot_dot,oneColor,JoinMiter,CapButt,2]");
this.setSeriesLineType(0, "[dashed,oneColor,JoinMiter,CapButt,2]");
this.setSeriesLineColor(1, "{255,11,11}");
}
