"cellForeCol"

Defines the text color for the active cell.

Synopsis

setValue(string shape, "cellForeCol", string Color);

getValue(string shape, "cellForeCol", string &Color);

shape.cellForeCol(string Color);

Parameters


Parameter	Description
shape	Name of the object
Color	Color string defining the text color

Description

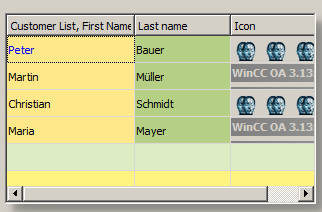

This attribute is used to access the foreground color for the currently active cell. The color string "Color" is used as the argument.

Assignment

Table
