Statistics

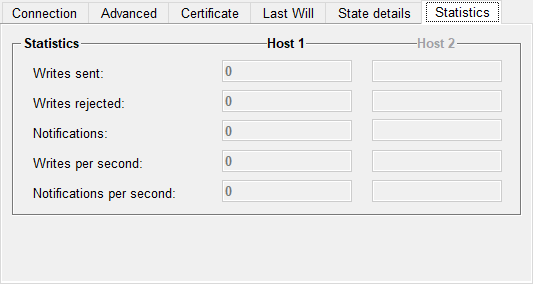

This tab provides statistical information on data sent and received. Any information applies to data values not messages.

Writes sent (sent publish requests since driver start)
Writes rejected (rejected publish requests since driver start)
Notifications (received topic notifications since driver start)
Writes per second (received write variable responses per second in the last interval)
Notifications per second (received topic notifications per second in last interval)
The update interval for statistics data can be configured via the config entry statisticsRefreshTime.
