BACnet_AO

The Analog Output object type (WinCC OA datapoint type) defines a standardized object whose properties represent the externally visible characteristics of an analog output (e.g. control command).

Datapoint Type Name

BACnet_AO

(Object/)Datapoint Type Structure

Faceplate

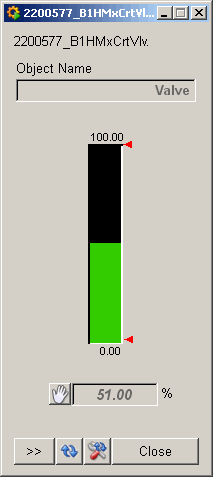

Figure 1. Faceplate of "Simple_AO"

When the hand mode is activated, the present value/state can be changed directly in the faceplate. For more details, see Value Input Panel.

Tabs

For more information on tabs, see Tabs.

Available Symbol Types

Name Usage $ Parameter Symbol
Simple_AO Control, e.g. control command for actuator valve DP
