BACnet_Loop

The Loop object type defines a standardized object whose properties represent the externally visible characteristics of any form of feedback control loop. Flexibility is achieved by providing three independent gain constants with no assumed values for units.

Datapoint Type Name

BACnet_Loop

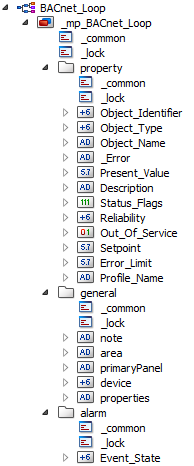

(Object/)Datapoint Type Structure

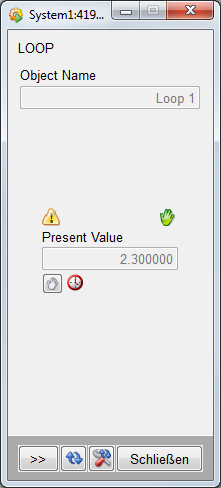

Faceplate

For general information on faceplates see Symbols and Faceplates - General or the external Standard Object Library documentation (<wincc_oa_path>\Stdlib_<version>\help).
