BACnet_Command

The Command object type defines a standardized object whose properties represent the externally visible characteristics of a multi-action command procedure. This object is used to write a set of values to a group of object properties, based on the "action code" that is written to the Present_Value of the Command object. Whenever the Present_Value property of the Command object is written to, it triggers the Command object to take a set of actions that change the values of a set of other objects' properties. Typically the object is used to represent a complex context involving multiple variables.

Datapoint Type Name

BACnet_Command

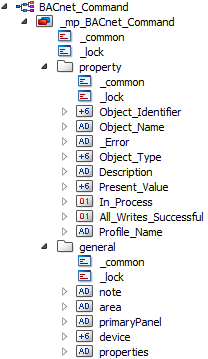

(Object/)Datapoint Type Structure

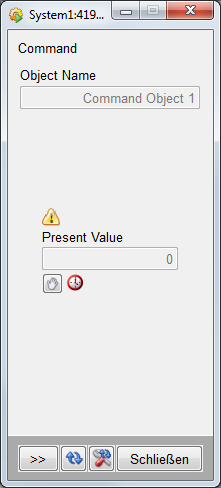

Faceplate

For general information on faceplates see Symbols and Faceplates - General or the external Standard Object Library documentation (<wincc_oa_path>\Stdlib_<version>\help).
