BACnet_AV

The Analog Value object type (WinCC OA datapoint type) defines a standardized object whose properties represent the externally visible characteristics of an analog value. An "analog value" is a control system parameter residing in the memory of the BACnet Device.

Datapoint Type Name

BACnet_AV

(Object/)Datapoint Type Structure

Faceplate

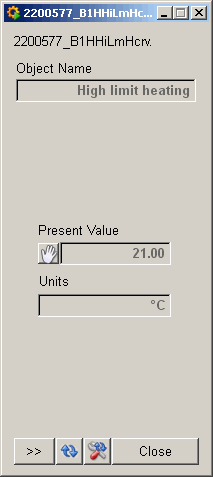

Figure 1. Faceplate of "Simple_AV"

When the hand mode is activated, the present value/state can be changed directly in the faceplate. For more details, see Value Input Panel.

Tabs

For more information on tabs, see Tabs.

Available Symbol Types

Name Usage $ Parameter Symbols
Simple_AV Digital representation of an analog value, e.g. result of an arithmetic operation DP
Flap_1 Flap angle DP
