Status

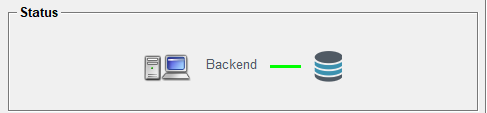

The NGA status shows the state of the UI - backend - database connection.

Green line = connection exists.

Red line = there is no connection between the UI - backend and the database.
