Advanced Configuration

The Following configuration settings are optional and should not be addressed for a basic setup of the Dashboard. They allow extended customization for advanced users or to address specifics of the plant's network configuration.

Certificates

After setting up the Dashboard backend, make sure to install the root certificate of the HTTP Server within your browser or the certificate store of the client operating system to ensure that a secure connection can be established.

Important: If the certificates are not properly installed on your client, a connection to the Dashboard is still possible, but some features might not work due to the necessity of a secure connection, e.g. Shared Worker.
CAUTION: Please be aware that default certificates of a Legacy Standard Project must not be used within a productive environment!
Note: In Firefox and Edge, the exception for self-signed certificates must be accepted twice. Once for the connection to the HTTP server (URL: https://<Server Host Name>:<HTTPS Port>) and once for the connection to the WebSocket server (URL: https://<Server Host Name>:<WebSocket Port>).

Dashboard User Permissions

Depending on the use case, the user must be assigned specific permissions. The following permissions are required for a Dashboard user to view, edit or publish Dashboards.

  • Users that do not have either permission bit can only view Dashboards without being able to edit or publish.
  • Users with the permission bit 3 can edit Dashboards.
    Note: This permission bit can be changed with the config entry [wssServer] canEditPermissionBit.
  • Users with the permission bit 4 can publish Dashboards.
    Note: The permission bit can be changed with the config entry [wssServer] canPublishPermissionBit.
Restriction: The user root is not allowed to login within the Dashboard.
Important: Every Dashboard user must have a password set.

Web Server Port

The web server uses the ports 443 (Windows) or 8443 (Linux) by default. They can be changed using the config entry [webClient] httpsPort.

WebSocket Port

In addition to the HTTP server port that is used to connect to the Dashboard, an additional port is used for the WebSocket connection. By default, the port 8448 is used, which can be adjusted by using the config entry [wssServer] httpsPort

Important: It must be ensured that both operating ports of the Dashboard, HTTP server and WebSocket, are reachable within your network and firewall configuration.

Web Server Redirect

To set up a redirect to the Dashboard instance within your web server, update the config file by inserting or changing the config entry [httpServer] indexPage to:

[httpServer]
indexPage = "data/dashboard/index.html"

You can now call up the dashboard directly via the following URL:

https://localhost
Note: Please note that this URL does not have an exception for HTTP server authentication, such as is the case with the Dashboard URL, and therefore it is necessary to authenticate with the user for the HTTP server before logging in. To deactivate this additional authentication, seeHTTP Server Authentication.

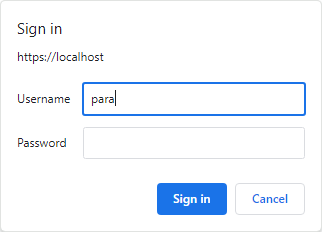

Figure 1. HTTP Server Authentication Dialog (Chrome)
Tip: For a Linux server, the HTTPS port must be added manually to the URL, as an automatic redirect to port 8443 is not available.
Attention: With this change, the Desktop UI Download URL changes from https://<Your Server Host Name> to https://<Your Server Hostname>/download, as the automatic redirect of the HTTP Server is now used for the Dashboard feature.

HTTP Server Authentication

By default, the WinCC OA HTTP server requires an authentication before a connection can be established. This behavior can be disabled by setting the config entry [webClient] clientSideAuth to the value 1.

[webClient]
clientSideAuth = 1

Authentication Token

As alternative to login with actual user credentials, a login can also be performed by using a temporary authentication token. How to create an authentication token for a user is described in Login via Authentication Token.

  • The validity period of an authentication token can be configured by setting the config entry [wssServer] tokenExpire. By default, a token is valid for 10 minutes.

  • For additional security, the token can be configured to be revoked by the server after a specific amount of time, even if the connection is still established. This behavior is disabled by default but can be enabled by setting the time limit with the config entry [wssServer] tokenExpireWarning, after which the connection will be forcefully closed. The user receives a warning within the Dashboard before the time limit expires.

    Figure 2. Session Expire Warning

Connection Heartbeat

The Dashboard uses a connection heartbeat to detect a continuous connection between server and client.

This heartbeat can also be used to ensure a more stable connection in slower or unstable network environments by increasing the interval between heartbeats.

The interval length can be configured by setting the config entry [wssServer] heartbeatSeconds.

Shared Worker

Data updates in the Dashboard are sent through a WebSocket connection to the WinCC OA backend. In the default setting, each browser tab and each window will connect to the WinCC OA backend individually and therefore each requires an individual dashboard license as long as the connection remains established.

When the config entry [wssServer]useSharedWorker is set to "1", all connected browser tabs will retrieve updates through a single WebSocket connection. This will reduce the required dashboard licenses to one license per browser. However, in this case it will no longer be possible to log into the same browser context with different users at the same time.

Important:

The use of a Shared Worker requires an HTTP certificate that is trusted by the web browser.

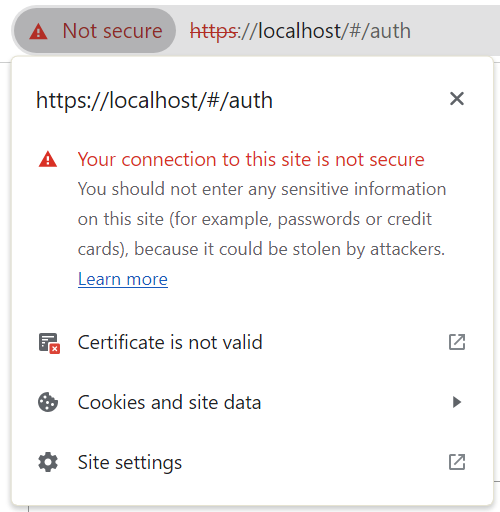

Figure 3. Untrusted connection (Chrome)

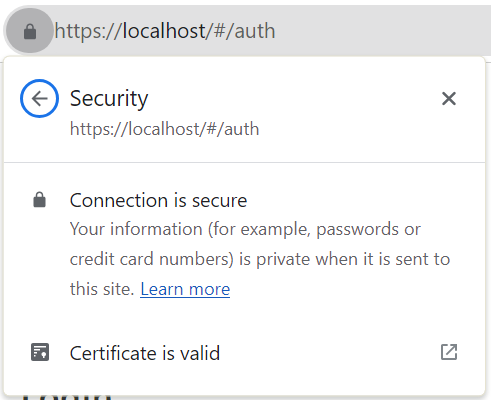

Figure 4. Trusted connection (Chrome)

Project without web server

If your project does not yet contain a web server, one must be added to your project manually. To do this, add a second CTRL manager with the following parameter:

webclient_http.ctl
