Different WinCC OA versions and COM Manager

If several different WinCC OA versions are installed on the same computer, the COM manager is registered for the version last installed. If the Excel report of another version than the last installed should be started, the COM manager for the right version must be registered. If, for example, the version 3.20 was installed and the Excel report of the version 3.19 should be opened, it cannot be opened.

In order to register the COM-Manager for the Excel report 3.20, 32Bit, execute the command for the version 3.20: C:\Windows\SysWOW64\regsvr32.exe "C:\Siemens\Automation\WinCC_OA\3.20\bin\windows\WCCOAcom.dll"

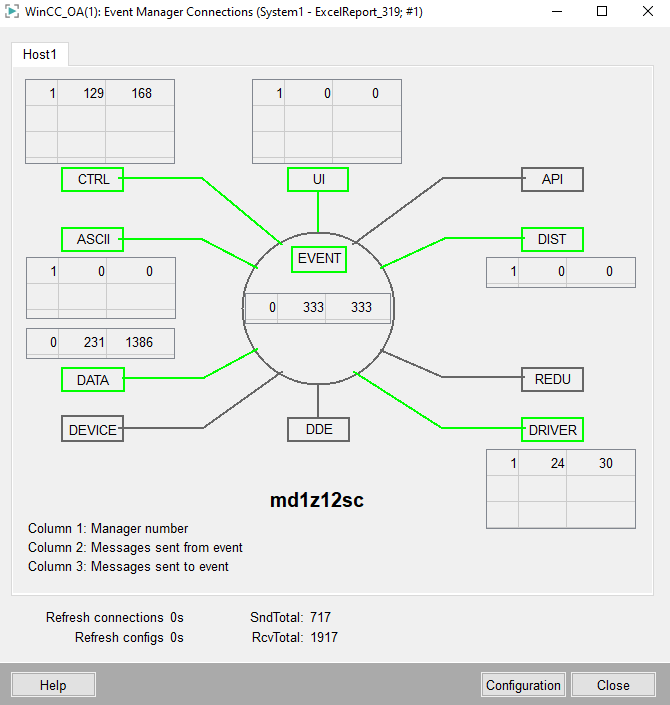

When WinCC OA Excel Report runs, the COM Manager (the manager starts automatically) is shown in the panel Event Manager Connections as ASCII Manager. You can open the Event Manager Connections-Panel via System Management > Diagnostics > EventMan. Connections:

Figure 1. Event Manager Connections

For more information, see chapter WinCC OA Diagnostics.
