Script Editor - Add Bookmarks

In the script editor and also in the script editor EWO, you can set/delete a bookmark by clicking in the left-hand "gray" area in a line. This is the area in which the breakpoints can also be displayed. The bookmark is indicated by a highlighted area to the left of the line:

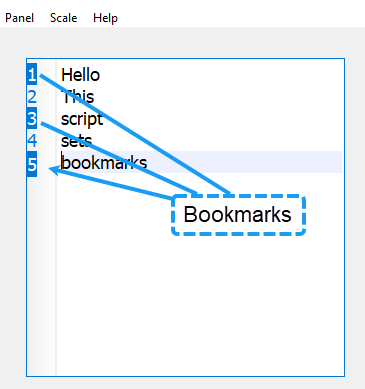

Figure 2. Bookmarks in Script Editor EWO

CTRL+B toggles the bookmark in the current line (add or remove a bookmark).
These numbered bookmarks for breakpoints also show their number in the bookmark area and you can jump to a bookmark by using CTRL+<number>.
ALT+PageUp/PageDown jumps to the previous/next line with a bookmark.
To add and restore bookmarks, see the CTRL functions saveBookmarks() and restoreBookmarks().
