BACnet_AI

The Analog Input object type (WinCC OA datapoint type) defines a standardized object whose properties represent the externally visible characteristics of an analog input (e.g. temperature).

Datapoint Type Name

BACnet_AI

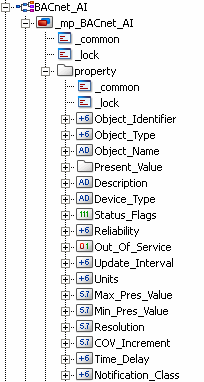

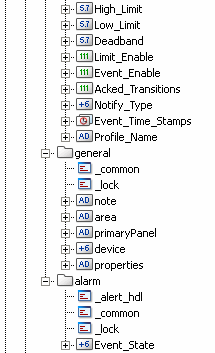

(Object/)Datapoint Type Structure

Faceplate

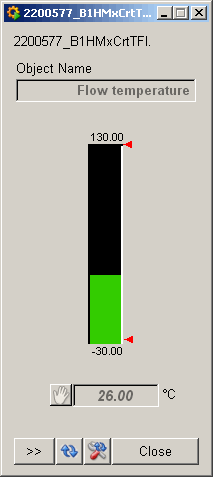

Figure 1. Faceplate of "Simple_AI"

When the out-of-service mode is activated (Out-Of-Service = TRUE), the value/state can be changed directly in the faceplate. For more details, see Value Input Panel.

Tabs

For more information on tabs, see Tabs.

Available Symbol Types

Name Usage $ Parameters Symbols
Simple_AI Measuring, e.g. temperature measurement DP
Temp_1 Measuring, e.g. temperature measurement DP
Temp_2 Measuring, e.g. temperature measurement using a thermometer DP
