BACnet_Averaging

The Averaging object type defines a standardized object whose properties represent the externally visible characteristics of a value that is sampled periodically over a specified time interval. The object records the minimum, maximum and average value over the defined interval, and makes these values visible as properties of the Averaging object.

Datapoint Type Name

BACnet_Averaging

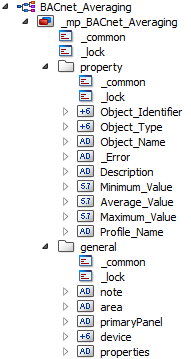

(Object/)Datapoint Type Structure

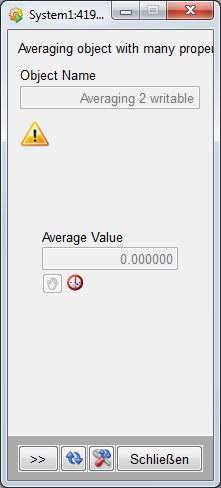

Faceplate

For general information on faceplates see Symbols and Faceplates - General or the external Standard Object Library documentation (<wincc_oa_path>\Stdlib_<version>\help).
