"data" - Bar array

Defines the Y values to be displayed.

Synopsis

setValue(string shape, "data", dyn_float yValues);

getValue(string shape, "data", dyn_float &yValues);

shape.data(dyn_float yValues);

Parameters

Parameter Description
shape Name of the object
yValues Y values

Description

The Y values of the bars can be set or read as type dyn_float using this attribute.

Example

main()
{
  shape bt=getShape("BAR_TREND1");
  bt.Type=2;
  // https://winccoa-docu-internal.siemens.net:8443/help/main/3.20/core/en/Control_Grafik/data_bar.html
  dyn_float df;
  // Values
  df=makeDynFloat(10, 30, 40, 25, 15);
  // Width of the bars
  bt.xWidth=15;
  // Start position
  bt.xStart=0;
  // Setting the values
  setValue(bt, "data", df);

  bt.xStep(5);
  bt.xWidth(19);
  bt.yCenter(25);
  bt.yRange(150);
  bt.yStep(10);
}

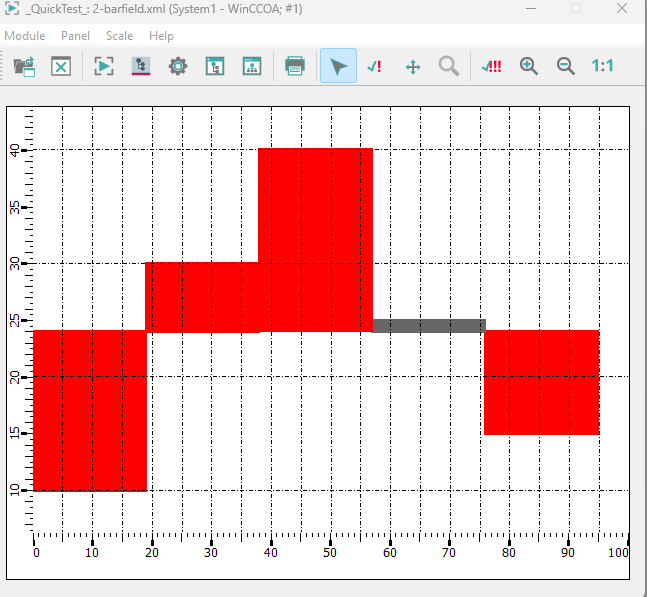

Figure 1. Bar trend as in the code above

Assignment

Bar trend
