Invert boolean data point element

This function in the ScriptWizard enables inverting any boolean data point element.

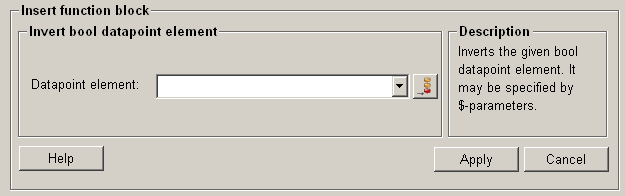

Figure 1. Overview - Invert boolean data point element

Structure

The following paragraphs list all fields and options of the function "invert boolean data point element" and explain how to use them.

Data point element

The data point element selection list enables accessing already defined data point elements (refer to dollar-parameter), which can be then inverted.

Add new data point

Opens the dialog to add a new data point element (see also Add data point element).

Help

For more information about the function "invert boolean data point element" please refer to the WinCC OA 3.11 online help by clicking on the push button "Help".

Apply

Click on the push button "Apply" and a boolean data point element is inverted. The entered values are then applied to the current function.

Cancel

Click on the push button "Cancel" and this function is rejected. A new function can be then selected.

Figure 2. A new function to invert a boolean data point element added successfully
