Encoder pool channels

Encoders convert analog outputs of external crossbars to digital video streams. Therefore, they are the interface between an external crossbar and VIDEO OA.

An encoder pool channel can be defined for each output of a crossbar.

Creating a new object

Open the context menu with a right mouse click on Encoder pool and select create new object. The following window is opened:

Figure 1. Entering the host name

After entering the host name the configuration panel will be opened.

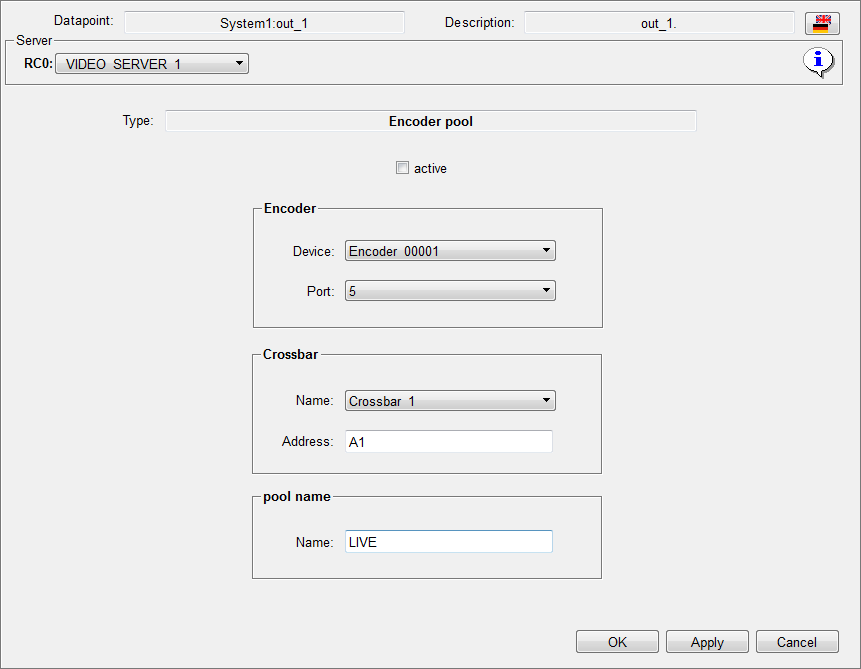

Configuration

Encoder

Defines the connection of the encoder pool channel to the encoder.

Crossbar

Defines the connection of the encoder pool channel to the crossbar.

Pool name

The pool name can be specified in this text field and is used for addressing the channel. Moreover, encoder pool channels can be grouped using this name.

Overview

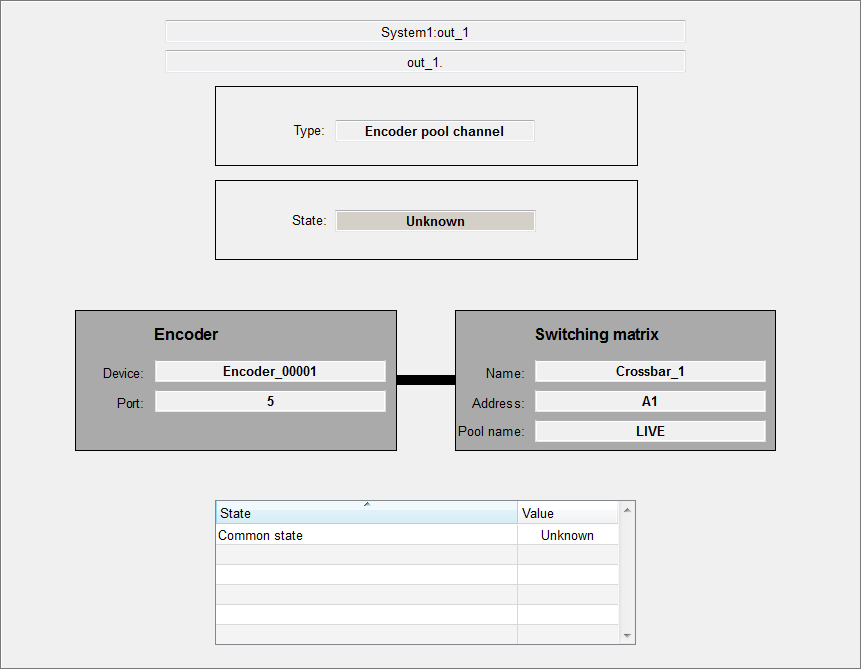

The configuration of a encoder pool channel is displayed in the object explorer as follows:
