To import the historical values and alerts from HDB/RAIMA to NGA, an importer is
required. This help describes the NGA importer and how to select and import data.

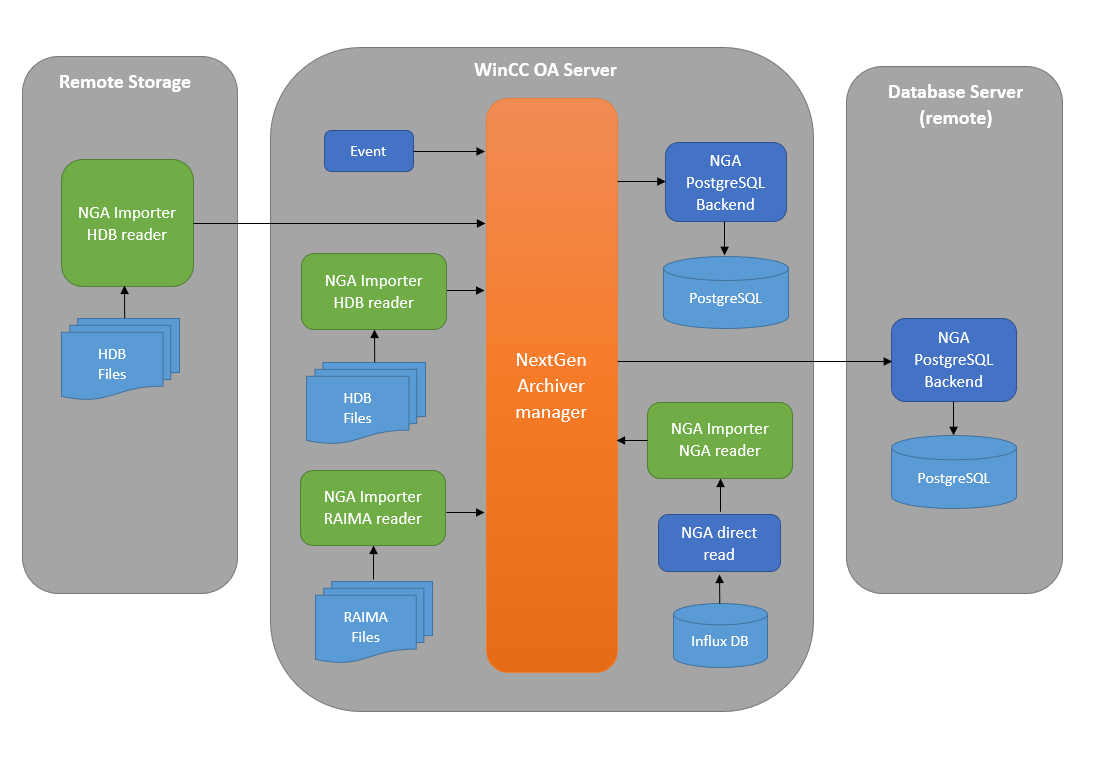

Figure 1. NGA Scheme
To import the historical values and alerts from HDB/RAIMA, enable the importing
functionality of NGA with the check box Automatic import on project
start in the panel NGA
Migration:

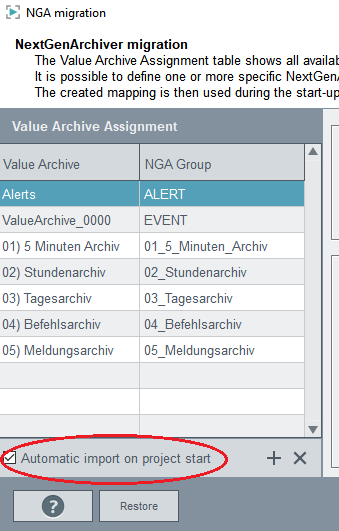

Figure 2. Check box "Automatic import on project start"
Note: If you do not use the option Automatic import
on project start, then you must manually activate the Importer
in the Importer section of the General
tab.
Important: Under Linux, the running
lm_ip service is a prerequisite for the importer. Check
whether the lm_ip service is running. If not, use the command
sudo <winccoa_dir>/bin/lm_ip -a lockmgr -f 600 to start
it.
Open the Importer panel via System Management > Database > NGA Importer.
Note: Earliest imported timestamps are lost and are
not displayed correctly in the Importer panel after restarting NGA or the entire
project.
