Standard Project

Server-side authentication for UI Managers provides increased security by preventing access by unauthorised UI clients. Server-side authentication for UI managers only authenticates the UI manager.

Server-side authentication for managers is used for all managers. Session binding reduces the risk of manipulated messages and unauthorised access to a system.

Communication security is increased as access by unauthorised managers is prevented. With session binding, the user name is part of the certificate.

Password Settings

Important: The user root cannot be used to log in, in an SSA (server-side authentication) project. You can, however, use all other users, for example the user "para". You can find the predefined users created by default when creating a project in the chapter Users. To create new users, see chapter Users. For how to set the user permissions, read the chapter Groups.
Figure 1. Create Project - Password Settings
Specify a user for the first login into a project and a password as well as other user accounts such as "root".
Note: The necessary users (root and para) are created by default. Other users are not created by default. However, these can be created during project planning.

You can use the same credentials for the other necessary accounts. This way, you don't need to specify new passwords for the different users.

  • Password settings are opened. Here you can specify the users and their passwords for the project. Use the eye symbol to display a password for a user and the arrow symbol to generate a password:
    Important: The password for a user must be at least 8 characters long and contain at least 1 special character and 1 uppercase letter! A password must be specified for a user!
    By default the following users are created:
    • the root user for the project and
    • the para user for the project
      Restriction: The users root and para cannot be changed.
    • Select an archiving database user. With this user and the password you have later access to the database.
    • You can activate an optional account for protecting project settings. Select a user to protect the project. For more information on protecting the project - see chapter Process monitor [PMON].

For more information on the different users, see chapter Predefined users.

Settings of Server-side Authentication

  • The settings of the server-side authentication are shown. Enter the web server host and web server port. You can use the local web server or an already existing web server for the project. The default port number is 443 under Windows and 8079 under Linux. Then select if you want to create a server-side project for the UI manager or for all managers.

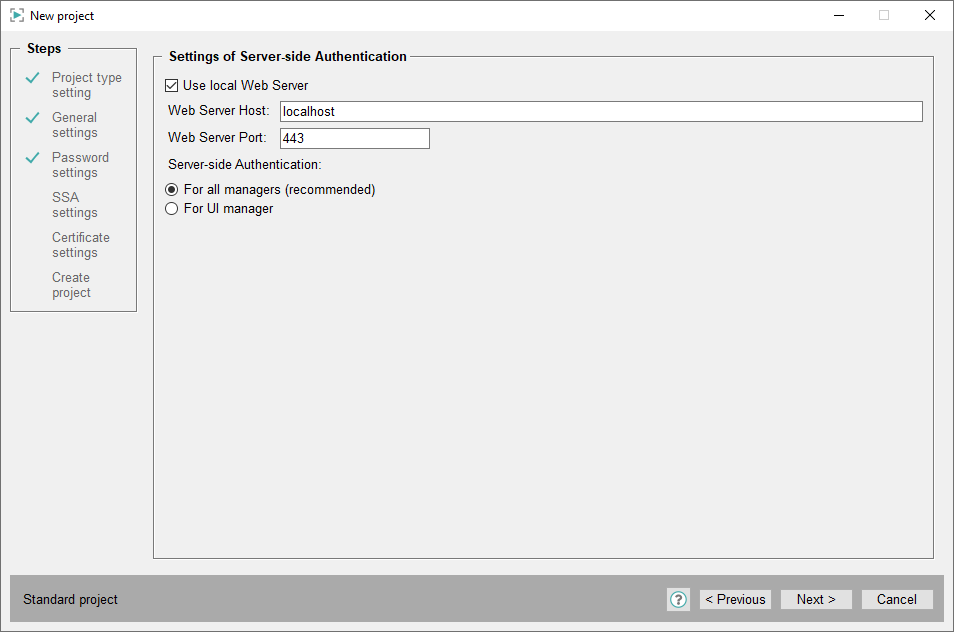

    Figure 2. Create Project - Settings of Server-side Authentication
  • If you selected a project for all managers (recommended), select then the certificates.
CAUTION: The certificates for the web server are automatically copied into the project. The web server certificates are used for all features that require the web server. Such features are, for example, the Desktop UI and ULC UX.
You can use either file-based or Windows certificate store certificates.
CAUTION: Under Linux you can only use file-based certificates. The handling is the same as under Windows!
Three options are available - the certificates can be generated as follows:

Settings for Certificates - Default:

Select a path and set a password for the generation of the certificates. The password must be set. The certificates are automatically generated, as the name suggests. Certificates for three WinCC OA Features: MxProxy, Web Server and SSA are created - see figure below.

Note: The certificates are saved in a separate directory called [proj_name_Certificates] in the directory where your project is located. All certificates listed below except for the root private key "root-privkey.pem" are copied to the config directory of the WinCC OA project.
Figure 3. Automatically generated Certificates

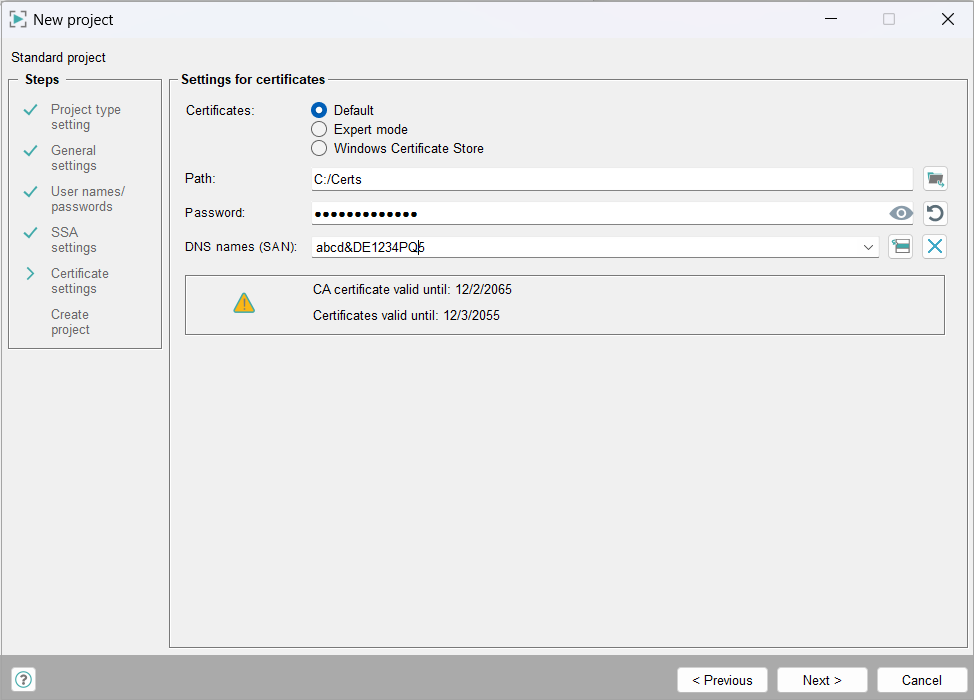

Figure 4. Settings for Certificates - Default

Settings for Certificates - Expert Mode:

The Expert mode certificates (.pem) must be created manually. If certificates already exist, you can select them by using the file selector. Select the option Expert mode and click on Next.

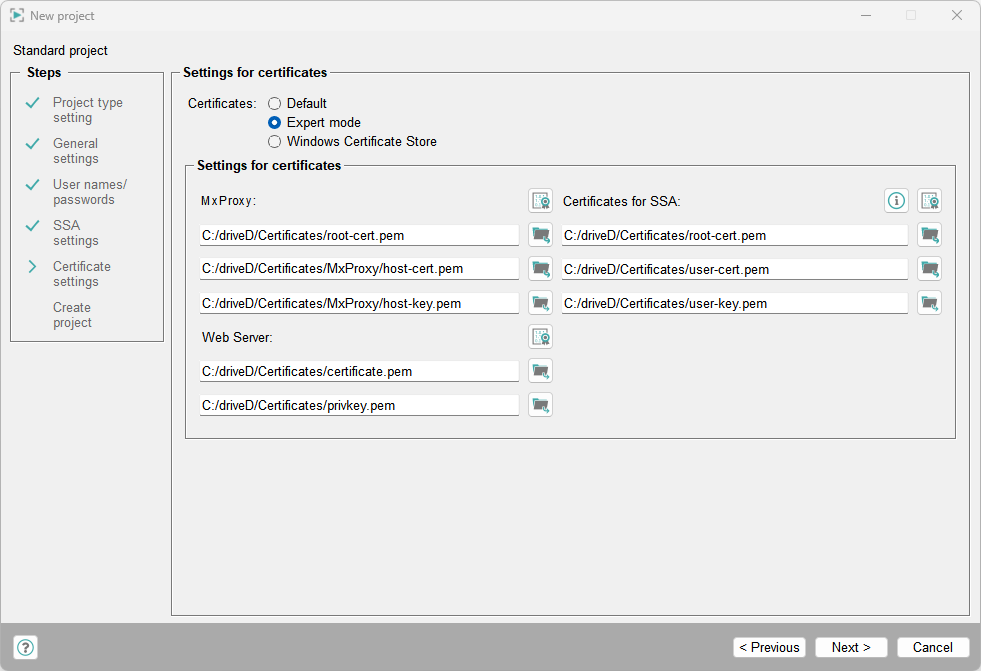

Figure 5. Settings for Certificates - Expert Mode
Figure 6. Settings for Certificates
  • Select certificates or create certificates by using the button. It opens the Panel for SSL Certificates that can be used to create certificates.
  • Select all necessary certificates (MxProxy, root(SSA) as well as web server - for example for Desktop UI or ULC UX). In the panel SSL Host certificate the right certificate option is always preselected., e.g. Certificates for WCCILproxy for MxProxy.
CAUTION: The certificate files for MProxy and Web Server must be in .pem format to be readable! For the MXProxy you can also use Windows certificate store certificates.

MxProxy:

The MxProxy certificates are for Multiplexing Proxy.

proxy-CA.pem: CA is the certificate authority. In the SSL Panel the CA is the Root certificate.

proxy-host-cert.pem: The certificate is the Host certificate in the SSL Panel.

proxy-host-key.pem: The private key is the key for the Host certificate. In the SSL Panel the private key is called "Root Key file".

SSA Certificates for root user:

The root certificates are for the server-side authentication of Managers:

user-CA.pem: CA is the certificate authority. In the SSL Panel the CA is the Root certificate.

user-cert.pem: The certificate is the Host certificate in the SSL Panel. Different host certificates can be created for the same root certificate.

user-key.pem: The private key is the key for the Host certificate. In the SSL Panel the private key is called "Root Key file".

Note: Note that the certificates created here are created for engineering purposes (root (Admin) rights). For safe operation the managers must be started by using a user with restricted rights, e.g. "Operator".

You can find an example of the configuration for different users in the chapter Example Configuration - SSA for Managers and an example of the config entries for SSA in the chapter Example of Config Entries - SSA for Managers.

Web Server:

Web server certificates are used for all features that need the Web server. Such features are, for example Desktop UI or ULC UX.

certificate.pem: The certificate is the Host certificate in the SSL Panel.

privkey.pem: The private key is the key for the Host certificate. In the SSL Panel the private key is called "Root Key file".

Figure 7. Settings for Certificates

Settings for Certificates - Windows Certificate Store

In order to use Windows certificate store certificates, the WinCC OA certificates must be converted to a Windows certificate store format (.pfx) and imported to the Windows certificate store. For how to convert and import certificates, see chapter Windows Certificate Store.

  • Select the option Windows Certificate Store and click on Next.

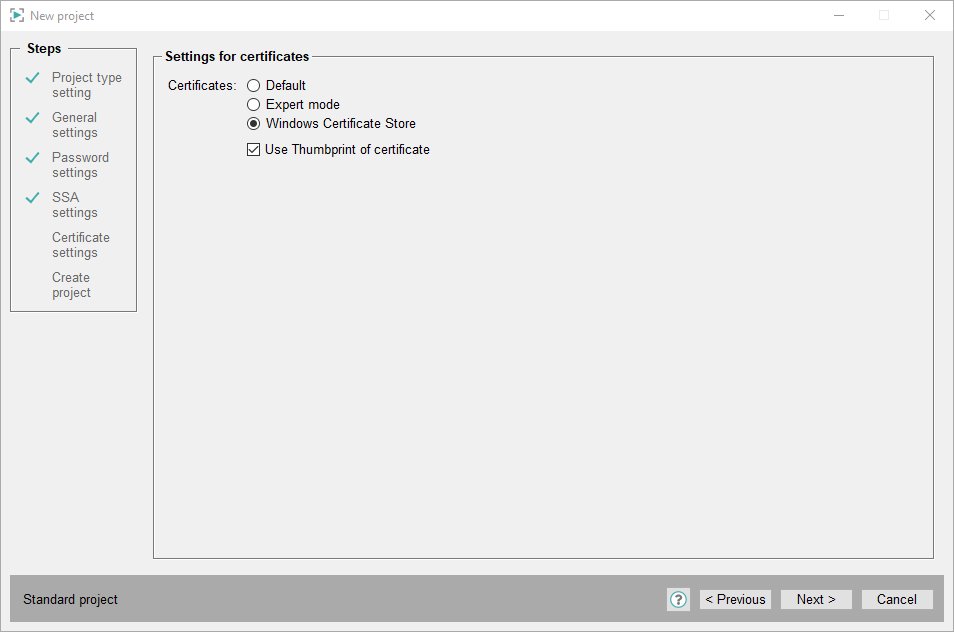

    Figure 8. Settings for Certificates - Windows Certificate Store
  • Create certificates for the MxProxy and SSA (root) via the SSL panel. Convert the certificates into the Windows Certificate Store format and import them to the Windows Certificate Store - see chapter Windows Certificate Store. Use Thumbprint of certificate:

    If many certificates are used, it could happen that two certificates with the same name exist but the content is different in each case. To ensure that certificates are unique, thumbprint certificates should be used. These are always unique.

    If you tick the check box Use Thumbprint of certificate, enter the thumbprints of the certificates to the certificate text fields (see the screenshot below). Furthermore, you must use the thumbprints for the config entries in the config file - see chapters Multiplexing Proxy Certificates with Thumbprint and SSA Certificates with Thumbprint.

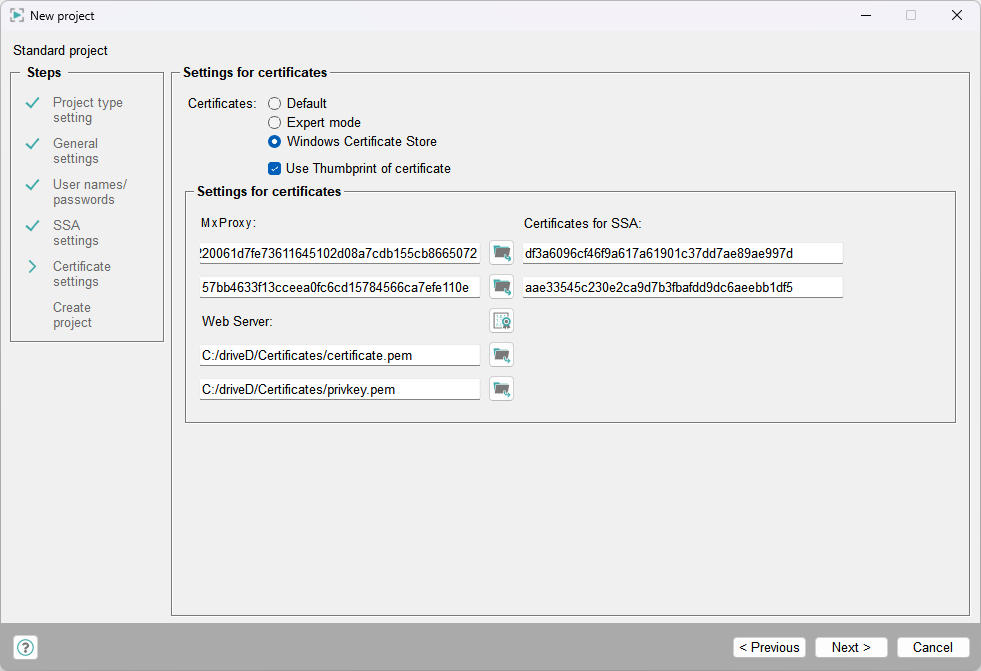

    Figure 9. Use Thumbprint of certificate - Thumbprint certificates
    CAUTION:

    Windows Certificate Store certificates cannot be used for the web server. For the web server, enter the paths of the filebased certificates "certificate.pem" und "privkey.pem" - see figure below.

  • Then enter the certificates in the Windows Certificate Store format:

    e.g. MACHINE:MY:SSA_host or MACHINE:MY:SSA_host. If you selected the USER account when importing the certificates, use the USER account, e.g., USER:MY:SSA_host.

    CAUTION: For the "Trusted Root Certification" certificate meaning the root certificate that is located in the "Trusted Root Certification" directory in the Windows Certificate Store, use the prefix "ROOT",e.g. MACHINE:ROOT:rootProxy. See also the example below.

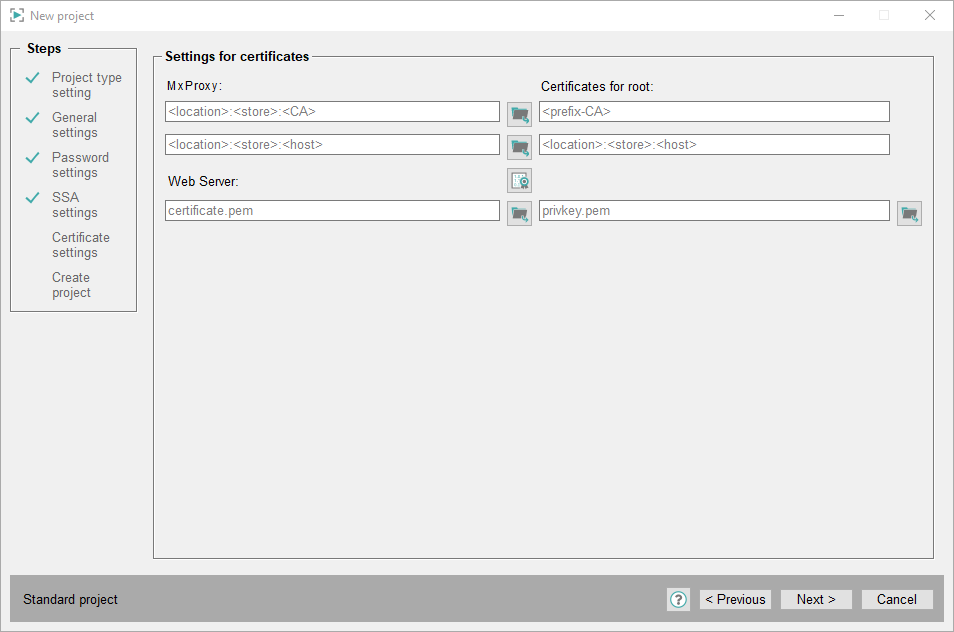

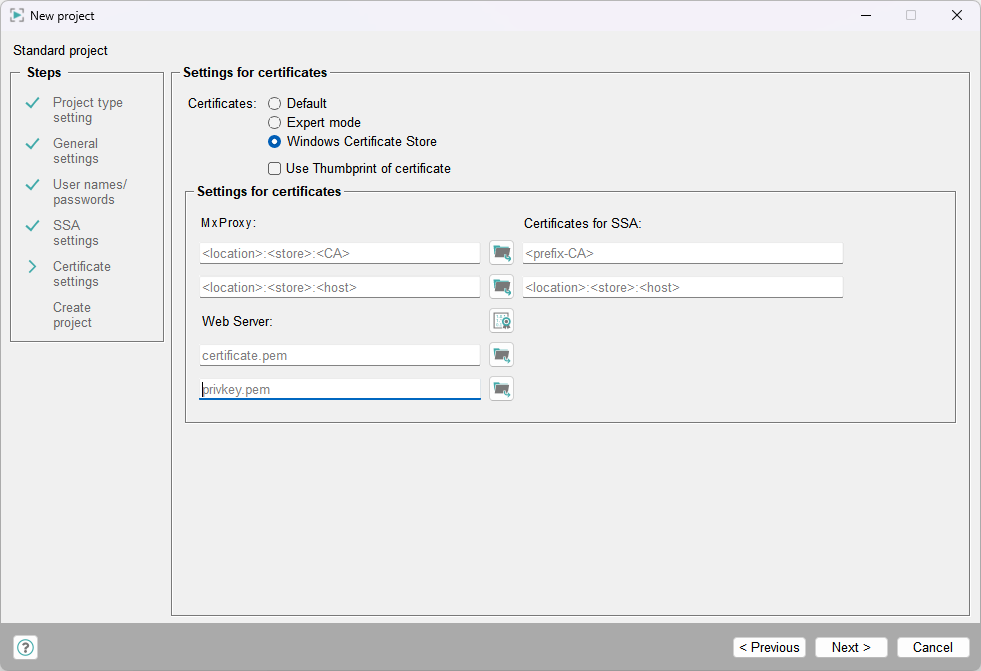

    Figure 10. Settings for Certificates - Windows Certificate Store Certificates

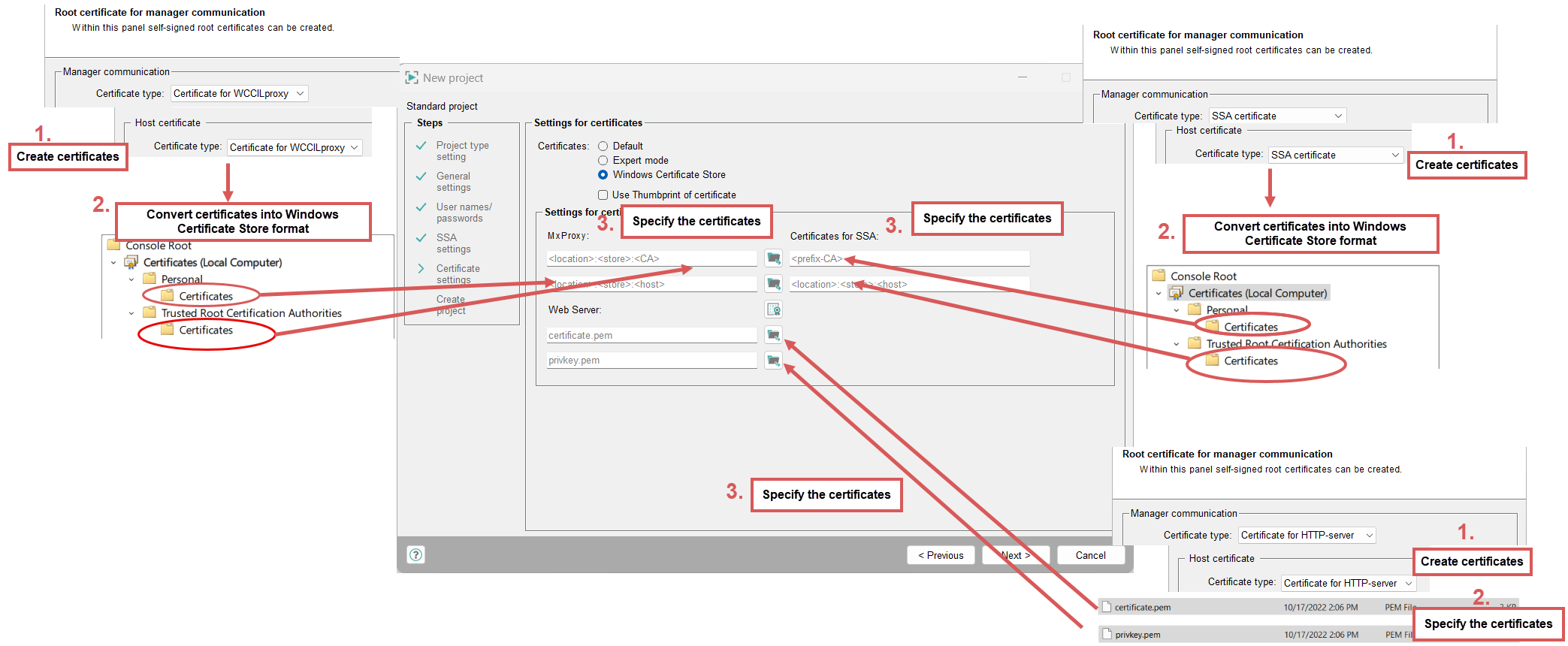

    Below you can find a figure that illustrates how to enter the Windows Certificate Store Certificates and how to use them.

    Figure 11. Settings for Manager - Windows Certificate Store Certificates - selected Files (Windows Certificate Store -> Settings for Certificates Panel)
