Get SAS-Token from the VS-Code

Install VS-Code - https://code.visualstudio.com/download
Start the VS-Code

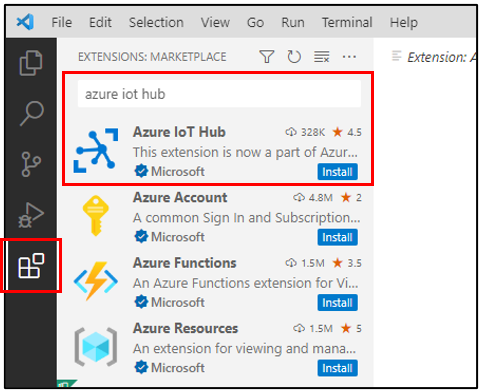

On the left side click Extensions, search for azure iot hub and select the Azure IoT Hub:

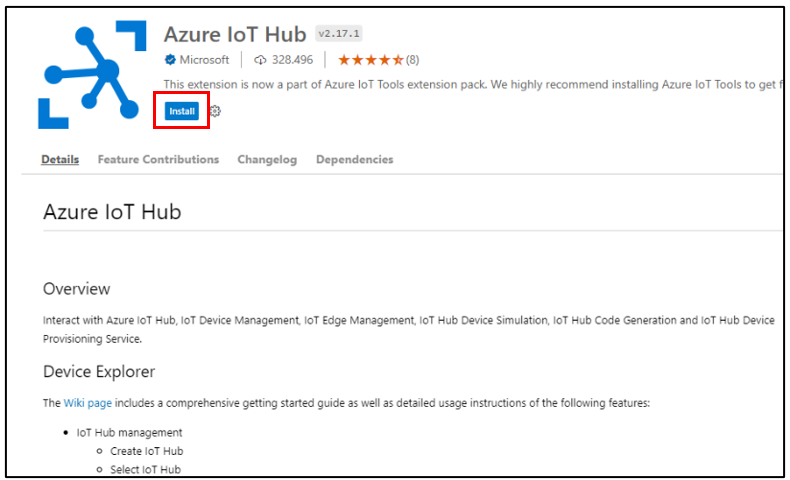

Click Install:

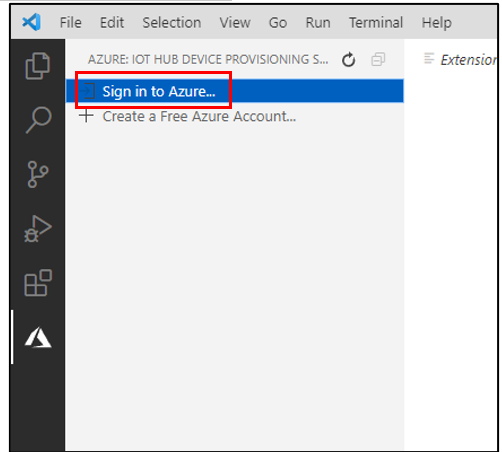

When installation is finished, an Azure Icon is shown on the left side. Click on Sign in to Azure:

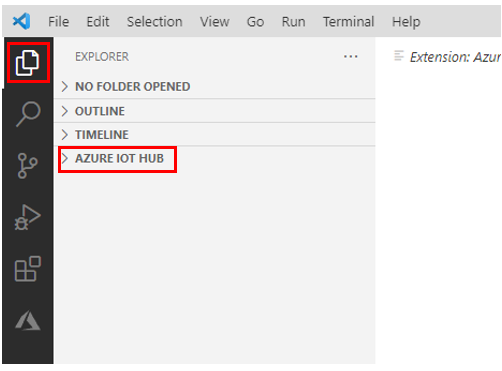

In the Explorer – the section AZURE IOT HUB is shown:
You can now see your Hub which you created:

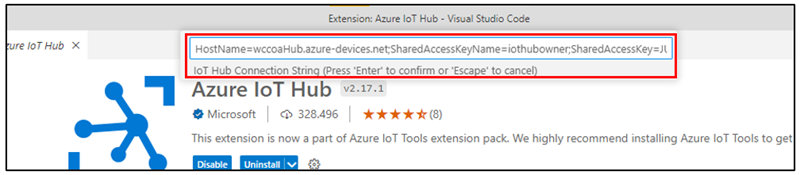

Expand Devices and click Set IoT Hub Connection String. Now a Pop-up is shown where you have to paste the primary connection string from Security Settings > Shared access > iothubowner and click ENTER:

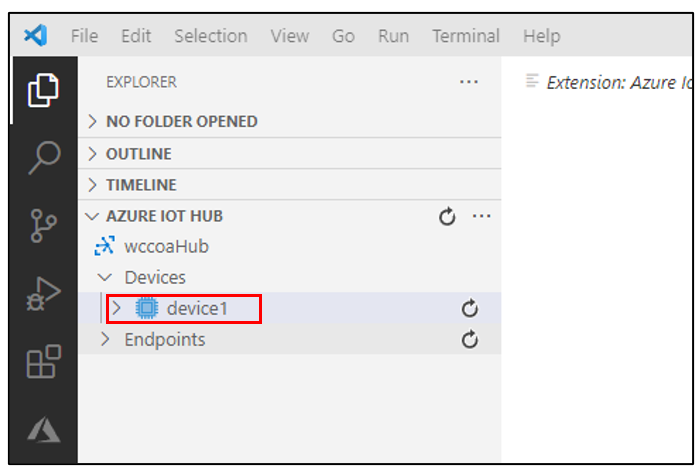

You can now see your device under Devices:
Right-Click on device1 and select Generate SAS Token for Device:

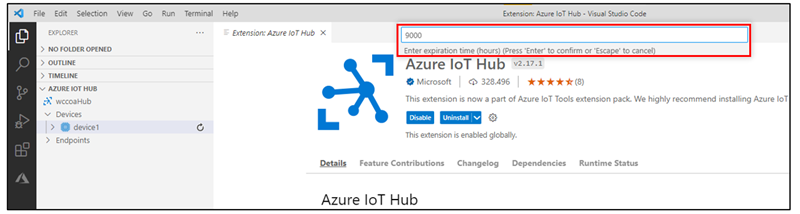

Enter an expiration time and click ENTER:
The SAS Token is copied to your clipboard and shown in VS-Code’s OUTPUT window:
