Example of trend configuration

The following example demonstrates how to use the Variable Trend to create and configure a trend display group for a compressed data point.

Requirements:

Using the archival and compression panel (open the panel by selecting in turn System Management -> Database -> Archive/compression. See also Archiving/Compression), create a data point type with 3 levels of compression and create a data point of this type.

  • For this example, you have created a data point type called heat and a data point heatoutput_3.
  • To the data point heatoutput_3, assign a sine function as _original.._value using the standard object "SineSim" (For the STD_SIMULATOR, open the standard object catalog in the graphics editor by selecting in turn View -> Catalogs ->wincc_oa_path [Version]). This curve displays all current values immediately. For the curves of the associated compression levels, the duration of display depends on the interval. For example, values of a five-minute interval, at the earliest, are displayed only after five minutes and new values are only displayed every five minutes. This must be taken into account for long intervals (weeks, months).

HOW TO CREATE A NEW TREND DISPLAY GROUP

  1. Click on the button in Trend configuration editor panel.

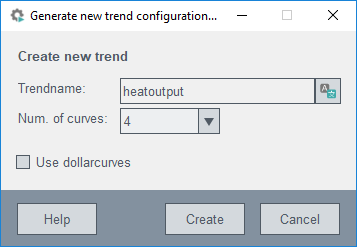

  2. Enter the desired group name and number of curves for example:

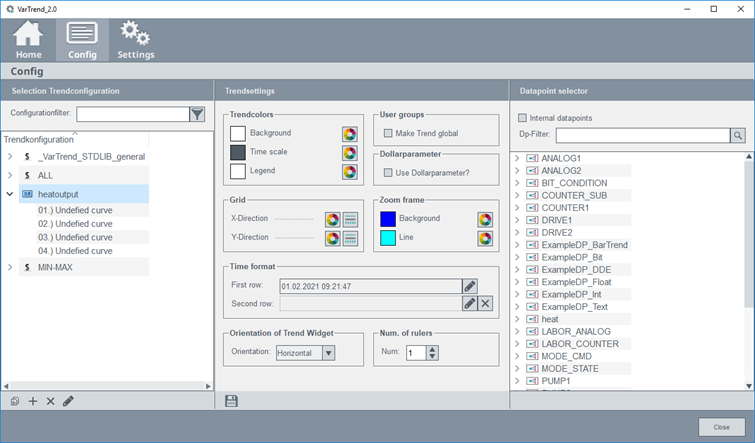

  3. Select the previously created configuration to change the settings.
  4. Open the corresponding drop-down menu and select the first curve.

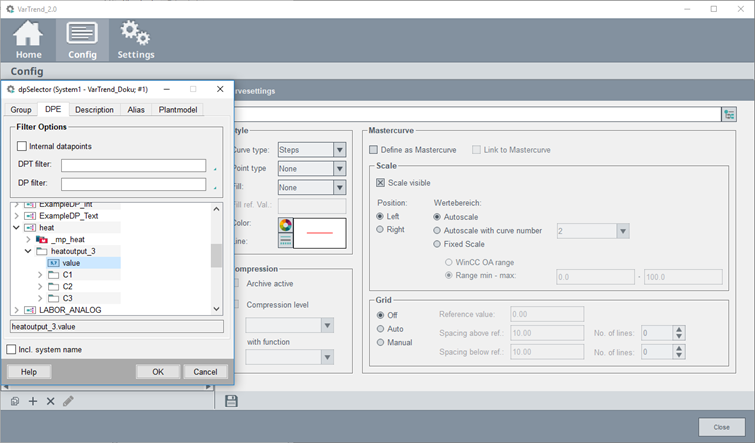

  5. Click on the data point selector to add a DPE to this curve (e.g. waermeleistung_3.value:_original.._value).
  6. Allocate DPEs to all other curves (e.g. heatoutput_3.C1.AVG_WT0, ..C2.AVG_WT0 und ..C3_AVG_WT0).
  7. Select a color, line style and scale (e.g. auto scale), etc. for every curve. Beware that for common scales (the auto scale with curve number option), only one scale will be displayed.
Note: You have now assigned fixed data point elements. If you want to use the trend display group (number of curves, line color and so on) independently of data point elements, activate the "use $parameters" option in the trend settings. The data point elements are replaced by $parameters. Now you can apply your settings to any other data point elements by replacing the $parameters with data point elements (see also Using predefined trend display group below) or by replacing the $parameters from a panel when they are displayed (see below).

Using the predefined trend display group

  1. Select, for example, the MIN-MAX trend display group.

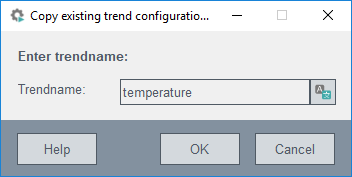

  2. Click Copy and enter a name, for example, Temperature trend. The entire MIN-MAX configuration will be applied.

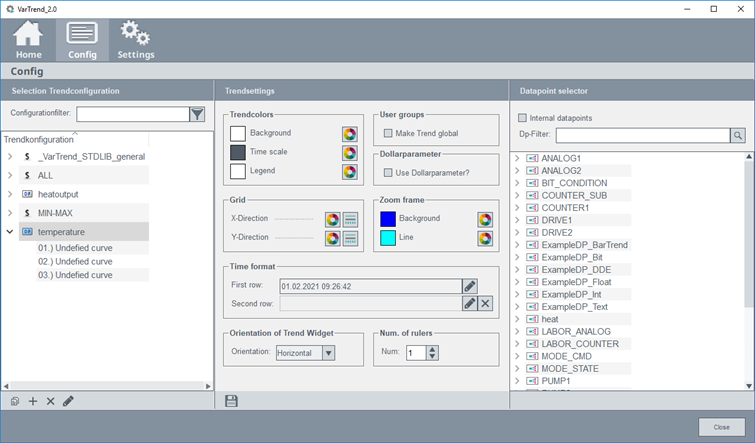

  3. Select the trend configuration to see all trend settings.
  4. Unlock the $parameters by deactivating the "Use $parameters" option. The curve's name becomes now "undefined curve".
  5. Select for each curve the data point element whose trend display you want to see, for example, the current value of the data point element heatoutput3.value for curve 1. For the other curves select, for example, the mean of the first and second compression level.

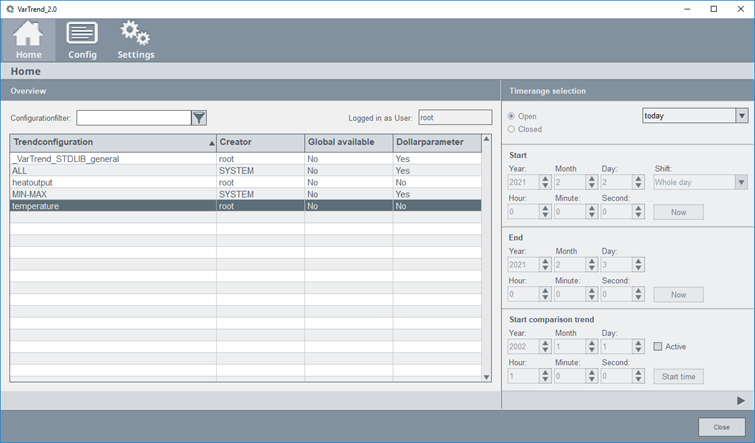

  6. Switch to the menu point "HOME" and open the trend configuration.

CHANGE DISPLAY MODE

  1. Select the trend configuration from the table.

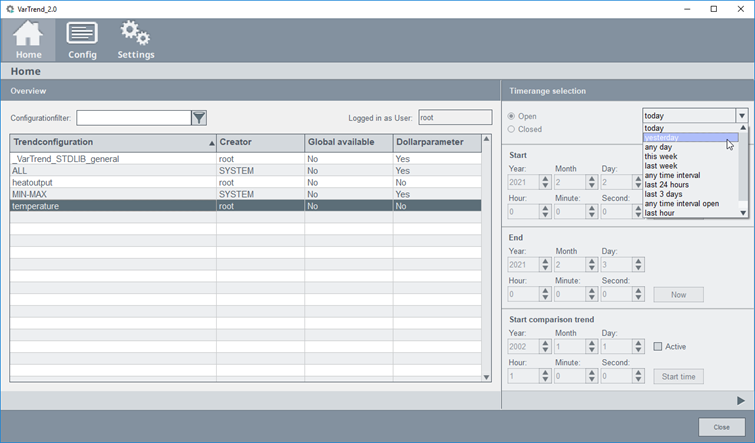

  2. From the combo box select the desired period, for example, any time interval.
  3. Enter the desired period below.
  4. Click on the button to open the trend configuration.
Note: You can only display current values with an open-ended period. Curves are in fact only displayed if the appropriate DPEs are actually archived for the query period (see also _archive (Archiving)).

Time comparison trend

A time comparison trend allows displaying a curve with a time offset. You can compare the values of a day or any other time range.

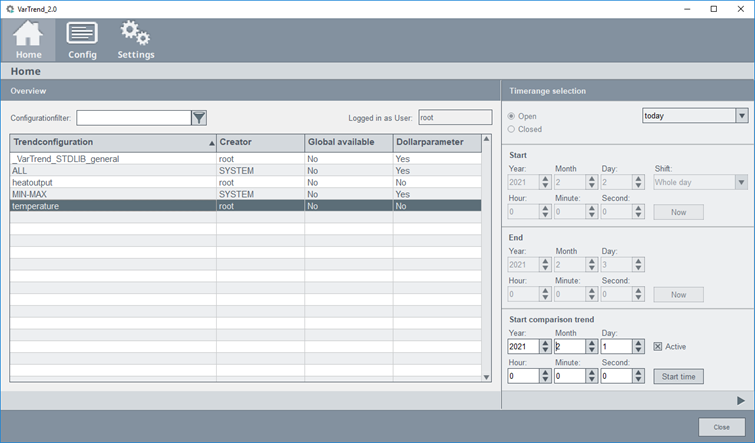

  1. Activate the check box "active" in the "start comparison trend" section.
  2. Select a start time.
  3. For a synchronous start time click the “Start time” Button.
  4. Choose a day (comparison trend) that you want to compare with the day selected first (start time).
  5. Click the button to display the trend configuration.

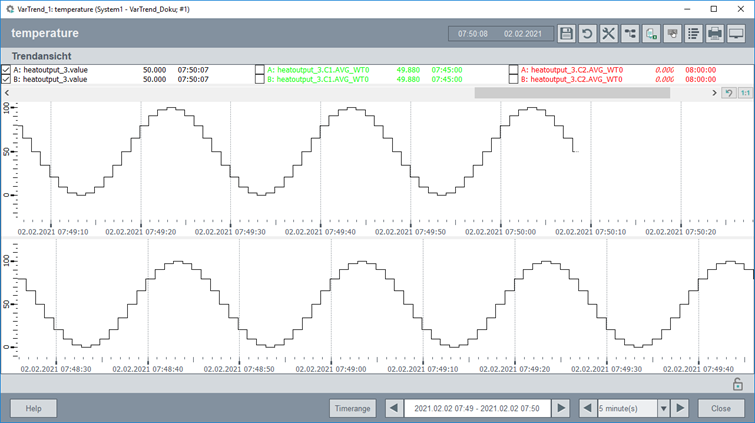

The following panel compares the five minutes averages of two consecutive days for the data point heatoutput_3 (over a one hour period).

Other applications

Trend display from a panel

Display the daily trend for any reading in a process display.

In order to do so, map a Variable Trend call with data point as parameter to a button (see also openTrend() and openTrendCurves()).

The Variable Trend automatically opens in a new module and displays the desired information (for example, five minute values together with an hourly envelope curve of minimum and maximum values).

Select the predefined trend display group "Temperature trend" to display it as today's trend:

main()
{
  openTrend("Temperature trend", 1);
  /* the first parameter designates the trend display group, second parameter designates the period. 1 = today`s trend */
}

Free selection from a list of curves

In a particular project, you want to select curves and then display them all together.

In order to do so, map a Variable Trend call with the curves as parameters to a button.

The Variable Trend displays up to 16 curves in different colors in the specified display mode.

System overview curves

You want to display the key system curves in one trend display.

In order to do so, define a trend display group that shows the key readings (for instance, inflow, outflow, degree of cleaning and four internal levels).

Clicking this button opens this trend display group configuration and displays the last three days values.
