Panel for Global Trend Settings

With this panel global settings for the variable trend can be made. These settings are therefore valid for all trend configurations. The user needs root permissions to be able to make settings here.

Global trend settings

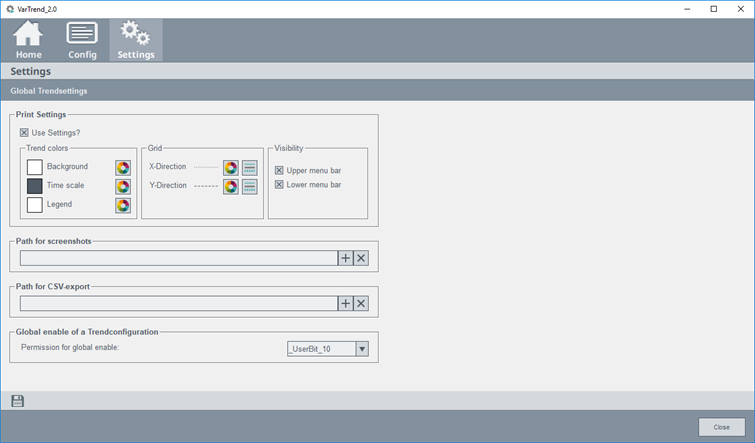

The individual sections of global trend settings are described below.

Print settings

In this section, settings can be made to the printout of a trend view. To use the print settings, first check the "Use settings?" checkbox. Afterwards the following options can be parameterized:

Trend colors

Select colors for background, legend and time scale of trend view for printout.
Grid

Select grid color and line style of trend view for printout.
Visibility

Select which elements should be visible on printout.
Upper menu bar
Lower menu bar

Path for screenshots

Default path that is used for saving screenshots.

Path for CSV-export

Default path that is used for CSV export.

Global enable of a trend configuration

A user with root permissions can specify which permission bit a user needs to have to get administration rights for the variable trend. With administration rights, all trend configurations are changeable. In addition, a user with administration rights can decide which trend configuration should be available to all users.

Save

All changed made to global trend settings are automatically saved.
